Hydraulic accumulator charging kit

CHECKING AND FILLING DEVICE FOR HYDRO ACCUMULATORS[1375]

As a basic version, it meets many requirements. The VGUPKIT universal gas tester and filler is an irreplaceable device for most hydraulic accumulators available on the market.

It is used to check and filling the pre-pressure of diaphragm, piston and diaphragm vessels.

To use it, it is screwed to the accumulator relief valve and a high-pressure hose is connected to the nitrogen cylinder.

Application: Inflation of accumulator tools

Batteries filling after replacing the bladder

Periodical inspection of batteries before charging

Checking the pre-charging of batteries during the installation phase

Change in charge status battery pre-charge

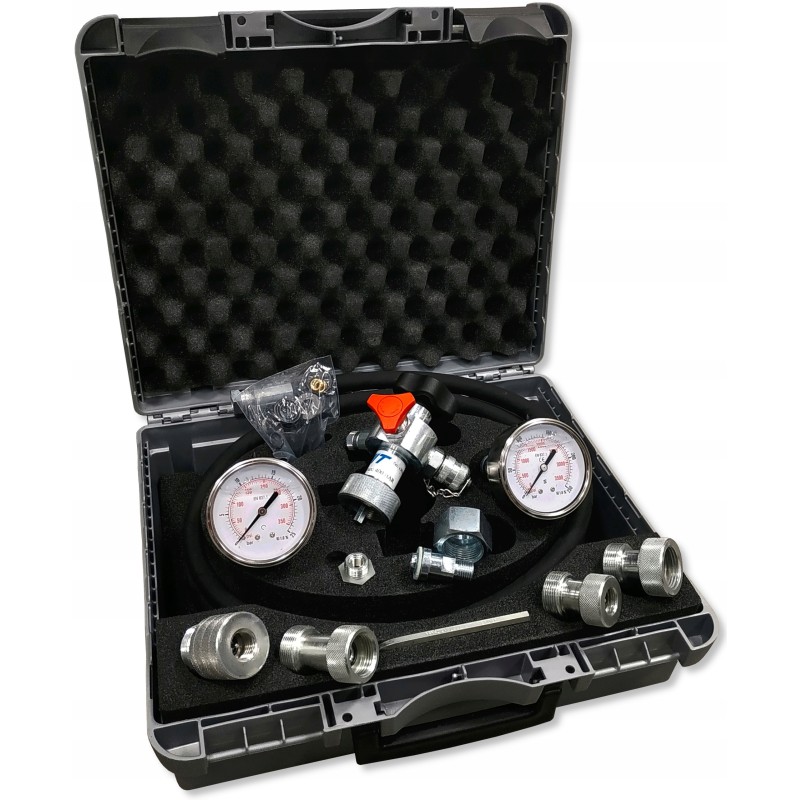

The complete control and filling device includes: protective plastic case

control and filling device

filling hose approx. 2 m with G1/4 fittings ' - G1/4'

adapter for nitrogen cylinder W24.32x1.814

M28x1.5 - M16x2

M28x1.5 - 7/8“ 14UNF

M28x1.5 - G3/4'

M28x1.5 - 5/8“ 18UNF

5/8' 18UNF - 5/16 (8V1 ) Schrader valve

6mm Allen key

63mm pressure gauge 0-25 Bar

63mm pressure gauge 0-250 Bar

The device fits the connections 5/8“, 7/8“, VG 8 and for all used tanks with M28x1.5 filling connection

Use: Before checking whether the gas pressure is changed, empty the tank.

Each set is accompanied by an instruction manual in English.

Checking and reducing gas pressure: In this case, it is not necessary to connect a hose.

The device is equipped with a non-return valve that prevents the outflow gas through a hose connection.

Increasing the gas pressure: When we want to increase the pressure, we must have a sufficient number of nitrogen cylinders with the appropriate pressure at our disposal.

If we do not have them, to obtain the desired higher pressure , we can use a nitrogen charger.

The applicable safety regulations must be strictly observed.

The nitrogen used should have a purity level of 99.8%, commonly available nitrogen meets this condition.

Technical Specifications: Outer width of the case: 340mm

Height of the case: 295mm

Thickness of the case: 130mm

Weight: 3.9 kg

The price applies only to the gas control and filling device in the suitcase shown in the first photo.
