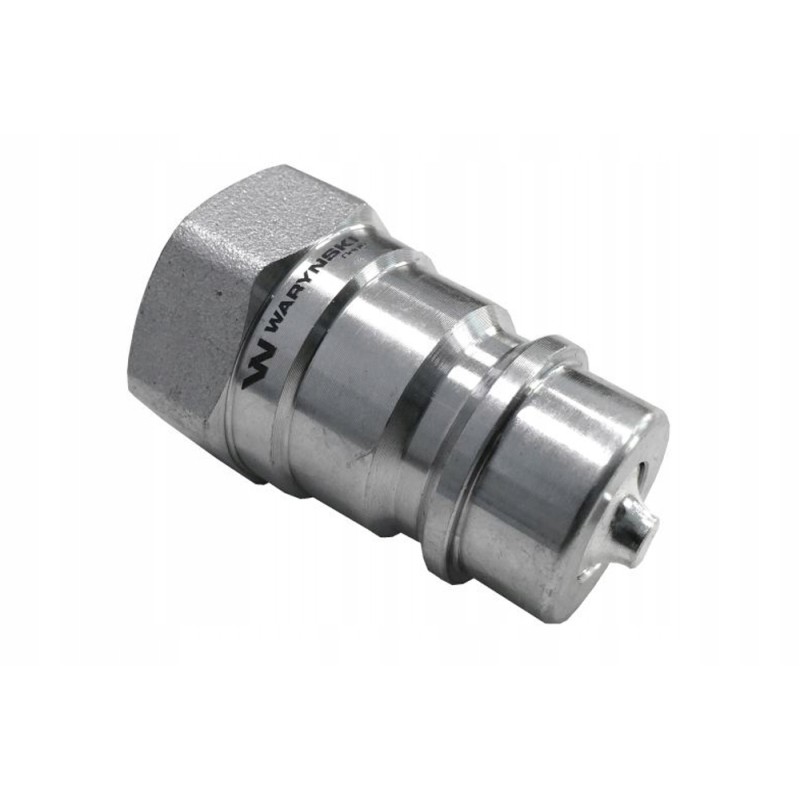

Hydraulic quick connector, plug G1 4, internal Warynsk
  • Hydraulic quick connector, plug G1 4, internal Warynsk
  • Hydraulic quick connector, plug G1 4, internal Warynsk
  • Hydraulic quick connector, plug G1 4, internal Warynsk

Hydraulic quick connector, plug G1 4, internal Warynsk

15010915380726
Waryński
£16.14
Quantity
5 Items

Description
HYDRAULIC QUICK CONNECTOR PLUG G1/4' BSP FEMALE THREAD ISO 7241-A WARYŃSKIHydraulic quick connector Waryński - ISO-7241-A plug. The most popular hydraulic quick couplings with a very wide range of applications. The quick couplings are designed

in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies

characteristics and dimensions in detail to enable compatibility of quick couplings

manufactured by various manufacturers in accordance with this standard. Interchangeable

with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP,

Tema and others.

Specification:

Operating temperature: -25°C to +120°C

Thread: Internal 1/4'

Max working pressure: 35 Mpa / 350 bar

Standard: ISO-7241-A (ISO-A)

Group: Quick connectors

Fits sockets: WIAR14MW

Cone - thread: BSP

Type: Plug

No. catalog: WIAR14SW

Application:

Quick connectors used in agricultural, forestry, industrial and construction machines.

Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand.

Producer: Waryński

WIAR14SW

Product Details
Waryński
15010915380726
FAITH14SW
5 Items
New

Data sheet

Manufacturer
Waryński
Part Number
FAITH14SW
