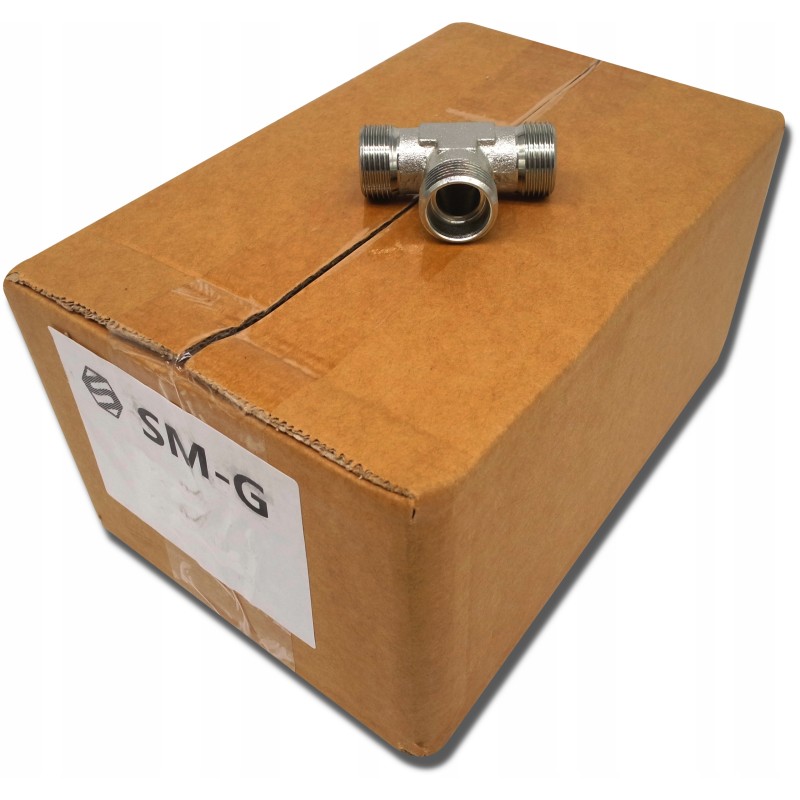

167x connector hydraulic tee type bbb 16 16 16

167x BBB hydraulic connector - tee M16x1.5 - M16x1.5 - M16x1.5 10L (FULL FACTORY PACKED CARTON) SKRAW MET CODE: [7656] Manufacturer: SM-G (SKRAW MET GROUP) Tee connector in a standardized lightweight version with self-cones — sealing when tightened.

Due to the lack of rubber ED seals and space for a seal, the connector is not suitable for screwing into the body of e.g. a pump, actuator or distributor. For this purpose, we use connectors that can be purchased at our other auctions.

Application: The connector is designed to connect three wires or to be connected to other connectors with the same sealing cone - at an angle of 90°

Perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and industry in general.

Technical specifications: Clamping cone angle: 24 ° (typical for the Polish standard)

Nominal diameter of the passage: 8 mm

M1 thread: external metric M16x1.5

M2 thread: external metric M16x1.5

M3 thread: external metric M16x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Liquid type: oil hydraulic

Connector version: light

Material: weldable steel, galvanized, corrosion-resistant
