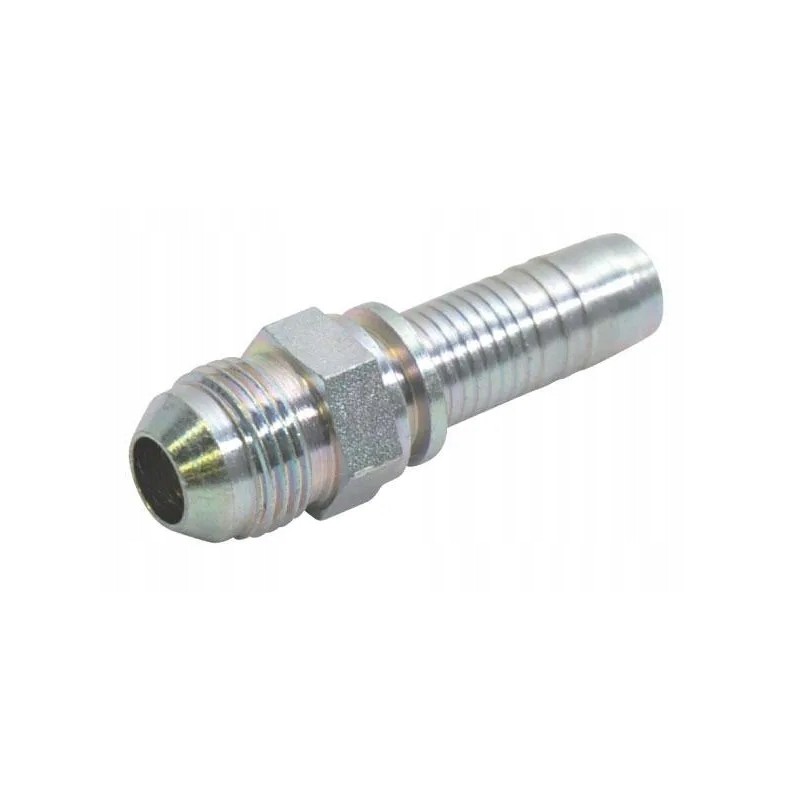

Tip dn13 3 4 unf

DN13-3/4 UNF end

Part number: PC1312

EAN: 8716106787951

Unit: Piece

Product details: Sealing on cone - metal on metal

Cone angle: 37°

Shape: Straight - 2 sides of the connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Male

Connector type no. 1 - code: AGJ

Connector thread diameter: 3/4inch

Connector thread type : UNF

CHWrench size for connector no. 1: 19.0mm

Connector type no. 2: Hose connector

Connector type no. 2 - male/female: Male

Diameter of connection no. 2: 1/2 inch

Diameter of connection no. 2: 13mm

Dimension from the axis of the connector to the bottom of the next connector: 31.5mm

Material: Steel

Surface treatment:

Galvanized

White passivated

Connection: JIC external thread (UNF thread ) with an external cone of 74°

Application: Screw connections on the folded edge of the sheet metal

Material: Steel

Type: AGJ
