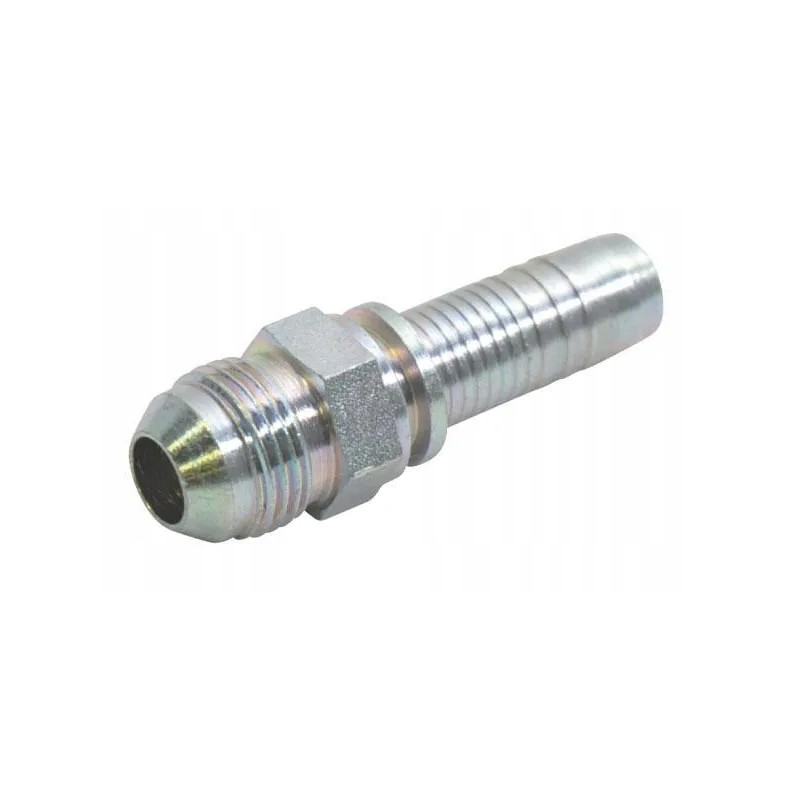

End dn08 9 16 unf

DN08 9/16 UNF end

Part number: PC89

EAN: 8716106440924

Unit: Piece

Product details: Cone seal - metal on metal

Cone angle: 37°

Shape: Straight - 2 sides of the connection

Connector type no. 1: Thread

Connector type no. 1 - male/female: Male

Connector type no. 1 - code: AGJ

Connector thread diameter: 9/16inch

Connector thread type: UNF

CHWrench size for connector no. 1: 17.0mm

Connector type no. 2: Hose connector

Connector type no. 2 - male/female: Male< p>

Diameter of connection no. 2: 5/16 inch

Diameter of connection no. 2: 8mm

CDimension from the axis of the connector to the bottom of the next connector: 24.8mm

Material: Steel

Surface treatment:

Galvanized

White passivated

Connection: JIC external thread (UNF thread) with external cone 74°

Application: Bolted connections on the folded edge of the sheet metal

Material: Steel

Type: AGJ
