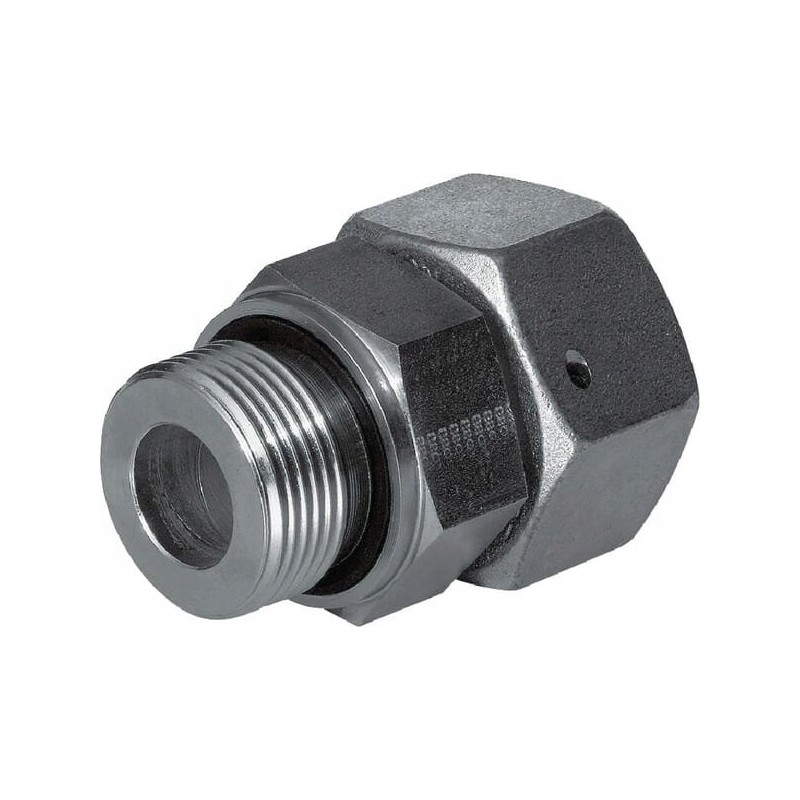

Straight connection with screws and seals m33x2 m36x2 28l

Straight connection with nut and seal M33x2 - M36x2 28L Parameters

Part number: EGESD28LM33WD

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides connector

Connector type no. 1: Seal ring

Connector type no. 1 - male/female: Male

Connection diameter: 28 mm

Length of connector no. : 18 mm

Connector No. 1 Thread Diameter: M33

Connector No. 1 Thread Pitch: 2.00 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 39.9 mm

Connector No. 1 Wrench Size: 41.0 mm

Connector Type No. 2: Swivel Nut

Connector No. 2 Male/Female Type: Female

Connector No. 2 Thread Diameter: M36

Connector No. 2 Thread Pitch: 2.00 mm

Connector No. 2 Thread Type: Metric

Connector No. 2 Wrench Size: 41.0 mm

Pipe diameter: 28 mm

DIN standard: 2401

Internal diameter: 22 mm

Surface treatment: Zinc, Nickel-plated

Max. working pressure: 250 BAR

Seal material: Nitrile rubber [NBR]

Series: 28L

Tightening torque max.: 230 N m

Advantages

- Limited risk of leakage Product details

- Pre-assembled with O-ring - Optimal connection and functionality with cutting ring

- High corrosion resistance - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request Benefits

- Low risk of leakage Dimension from the axis of joint no. 2 to the end of the next joint 35mm
