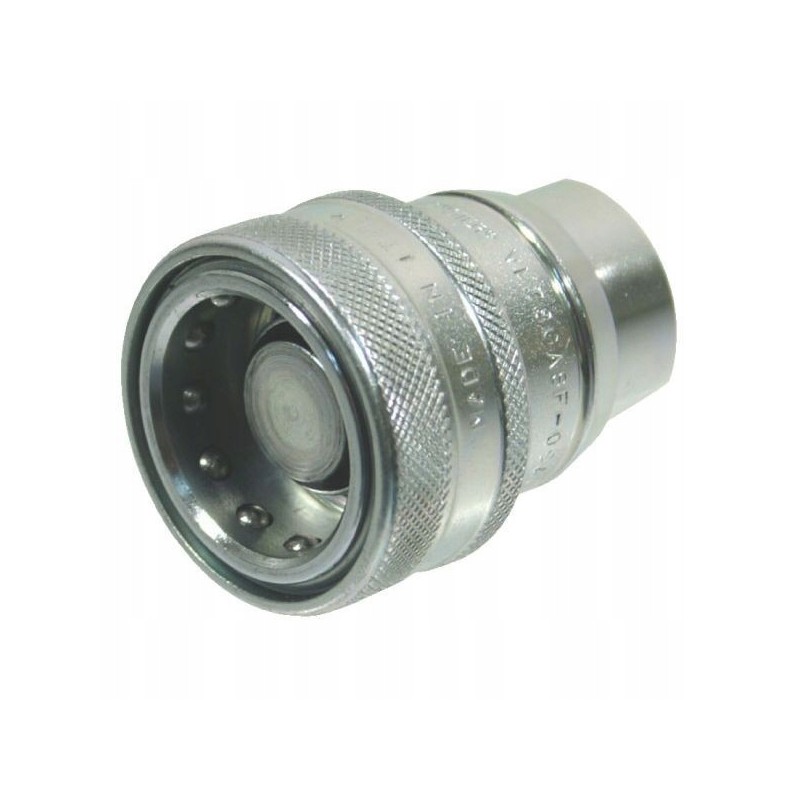

Vf038gasf flat quick connector brake system vf 3 8

Flat quick connector for the VF brake system, socket 3/8, internal thread 3/8 BSP INDEX: VF038GASF

Material: Steel

Technical information: - The connector must be screwed on until it stops

Specifications: - Connector with a special flat valve

Benefits: - Minimal leakage rate

Properties: - Connection without air inclusions - Cannot be connected under pressure

Valve type: Flat

Shape : Straight - 2 sides of connection

Application: - Hydraulic braking systems - Mineral oil based fluids

Size: 10 mm

Outer diameter: 44 mm

ISO standard: 5676

Series: VF

Connector thread diameter: 3/8 inch

Connection diameter: 44 mm

Surface treatment: White passivated

Connector thread type: BSP

Total length: 54.5mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 379.2g

Working pressure: 150BAR

Join type no. 2 - male/female: Female

Possibility of connection under pressure: No

Operating temperature max: 125°C

Operating temperature min: -25°C

Quick connector lock type: Balls around the circumference

Connection method: Shifting the sleeve

Method of disconnection: Shifting the sleeve

Type of connector no. 2: Thread

Thread diameter of connector no. 2: 3/8 inch

Type of thread of connector no. 2: BSPP

Number of threads per inch of thread of connector no. 2: 19

Flow at 2 bar pressure: 40l/min

Type of connector no. 1: Quick Connector

No.1 Connector Type - Male/Female: Female

No.1 Connector Wrench Size: 27mm
