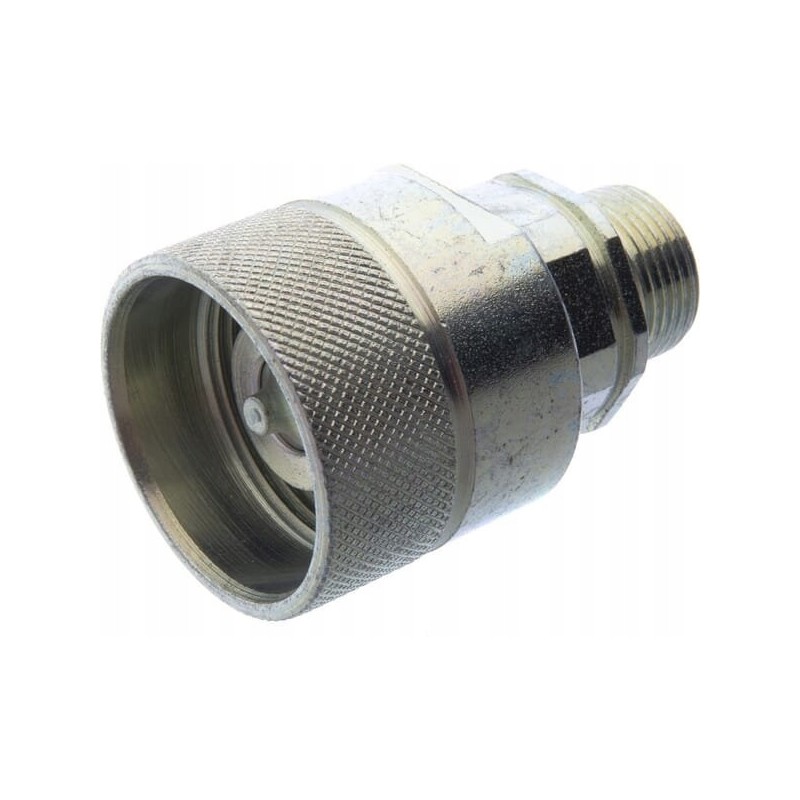

Screwed quick connector 1 2 male thread M22x1 5

Screwed quick connector 1/2' external thread M22x1.5 14S - plug Parameters

Part number: SKSM12S22

Unit: piece

Manufacturer: DNP

Possibility of connecting under pressure: Yes

Connection: 14S

D [D]: 42 mm

D1 [D1]: 22 mm

Length [L1]: 54 mm

Flow max . : 80 l/min

Max. temp: +100 °C

Min. temp.: -30 °C

Nominal pressure: 400 BAR

Note: Can be connected at a pressure of max. 50 bar

Fits original number: HS102S1422

D1: 22 mm

ISO standard: 14541

Seal material: NBR / PTFE

Thread M: M22x1.5

BG size: 1/2

Surface treatment: White, passivated

Thread length [L3]: 14 mm

Wrench width [SW]: 36 mm

Specifications

- Self-locking connecting thread

Benefits

- High working pressure

- Protection against unintentional unscrewing due to vibrations Application

- Construction machinery

- Mineral oil based fluids Properties

- Solid workmanship - Low pressure losses - With cut-off on both sides Technical information

- The connector should be screwed in until it stops
