Multiplier 1 3 8 g pump 40l hydrolider

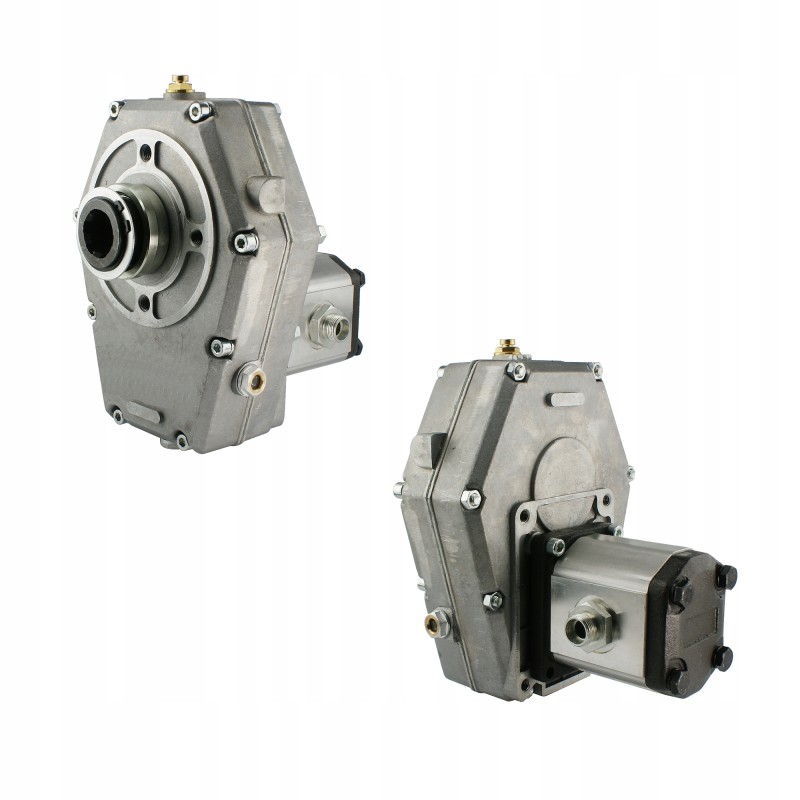

MULTIPLIER WITH HYDRAULIC PUMP Set:

Multiplier 1:3.8

Gear pump 20cm3

Connecting clutch

Screws and connections

Production:

Original product of the Hydrolider brand, symbol: 1.45.01.040

Application:

It is widely used in hydraulic systems in agriculture, horticulture and forestry , construction and broadly understood industry.

A strong and efficient set, ideal for small and medium-sized forestry and construction machines and tractors, including C-330, C-360, C-385, ZETOR, MF and others with drive from the PTO shaft.

Used wherever the original hydraulic pump installed in the machine is not strong and efficient enough or when an additional, new hydraulic system is needed to control the newly installed equipment.

Technical data of the set:

The gearbox is mounted on the PTO shaft using a latch, this solution means that it can be mounted or dismantled quite quickly if it turns out that we need it PTO to another machine.

Efficiency of the set:

The efficiency depends on the revolutions of the PTO shaft to which the set is connected. The higher the PTO revolutions, the more efficient the pump.

Efficiency of the set in l/min relative to the PTO shaft revolutions:

220 rpm per PTO efficiency 16L/min

320 rpm on PTO capacity 24L/min

430 rpm on PTO capacity 32L/min

540 rpm on PTO capacity 40L/min

Efficiency of the set in l/min relative to engine revolutions in tractors C-330, C-360, C-385, ZETOR, MF 255 and derivatives:

800 rpm on the engine efficiency 16L/min

1200 rpm on the engine, efficiency 24L/min

1600 rpm on the engine, efficiency 32L/min

2000 rpm on the engine, efficiency 40L/min

Technical data of the gearbox:

Transmission ratio: 1:3.8 Max power: 20 kW

Fits a typical 1.3/8' PTO shaft

Rotations on the shaft PTO: max 540 rpm

It has a sight glass for checking the gear oil level.

Possibility of working with pumps of the second and third group

Material: body - aluminum, gears - steel

Requires filling with gear oil.

When used for the first time, to increase the durability of the gear, it is recommended to change the oil after the first 50 operating hours.

Technical data pumps:

Geometric volume: 20 cm3/rev

Rotation direction: right

Maximum rotational speed: 2500 rpm

Maximum pressure in continuous operation: up to 25 MPa
