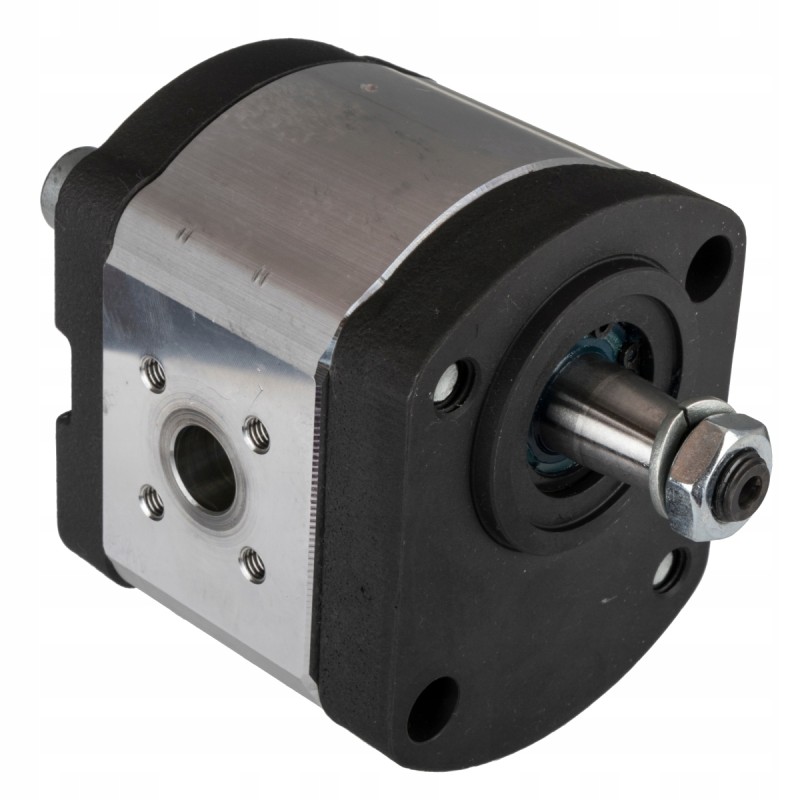

Hydraulic pump case john deere bosch

Case John Deere Bosch Hydraulic Pump 0510415311 MIZAR Number: 62601

Case John Deere Bosch Hydraulic Pump 0510415311 Specification:

Direction of Rotation: L

Page Hole Axis Circle Diameter suction: 40mm

Diameter of the circle of the hole axis of the discharge side: 35mm

Mounting diameter: 50mm

Conical 1:5 (17 x 17)

Q: 8cm³/rev

P1 continuous: 250bar

Temporary working pressure max: 280bar

Working pressure max: 300bar

Maximum rotation speed: 4000 rpm

Min rotation speed: 700 rpm

Diameter of the pressure connection bolt spacing: 35mm

Section connection bolt spacing diameter: 40mm< p>

Front and rear cover material: Steel

Reference no.:

0510310303, 0510410003, 0510415301, 0510415303, 0510415306, 0510415311, 0510510321,

0510515310, 0510515326, 0510610313, 0510615314, 1986963C1, 1986963C1, 3145248R93,

AL10681, AL15149, AL16963, AL37752, AL377 53, G139860011011, G231941010010

Application:

John Deere:

Series 10, 510, 710

CASE IH: 433, 533, 733, 833, 440, 540, 640, 740, 840, 940, 644,< p>

744, 844, 844S, 745, 845, 353, 383, 423, 453, 523, 624, 654, 724, 734, 743, 824

Steyr: 8055, 545( A), 548(A), 650(A), 658(A), 768(A)

MIZAR number: 62601
