Connections of the 2-section distributor badestnost p40

SET OF CONNECTORS FOR 2-SECTION DIVIDER P40L/min BADESTNOSTApplication:

They are widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connectors enable the connection of the distributor with hydraulic lines .

Technical data:

1 piece = 1 set

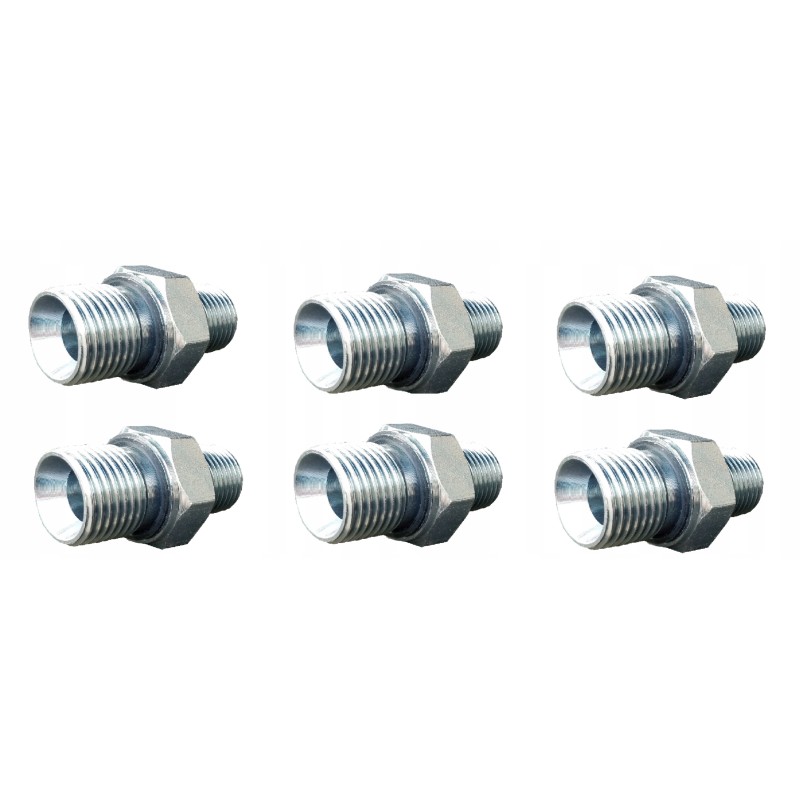

The set includes 6 connections, one for supply and return and 4 for sections. All connections in the set at the thread on the distributor side have a rubber seal. There is no need to add additional seals here.

Threads:

CONNECTION MOUNTED ON THE POWER SUPPLY:

Thread on the distributor side, inch BSP: 1/2'< p>

Thread on the hydraulic line side: M22x1.5

---------------------------- -------------------------------------------------- -------

CONNECTION MOUNTED ON THE RETURN:

Thread on the distributor side, inch BSP: 1/2'

Thread on the hydraulic conduit side: M22x1.5

---------------------------------------- ---------------------------------------------

CONNECTIONS MOUNTED ON THE SECTION:

Thread on the distributor side, inch BSP: 3/8'

Thread on the hydraulic line side: M18x1.5

-- -------------------------------------------------- ---------------------------------

Material:

bodies : corrosion-resistant galvanized steel

sealing: rubber

Helpful data:

M18x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 17.6 - 17.9

Inner diameter [mm]: 16.2 - 16.6

------------ -------------------------------------------------- -----------------------

M22x1.5 thread diameter measured with a caliper:

Outer diameter [mm] : 21.6 - 21.9

Inner diameter [mm]: 20.2 - 20.6

--------------- -------------------------------------------------- --------------------

BSP 1/2' thread diameter measured with a caliper:

Outer diameter [mm]: 20.5- 20.9

Inner diameter [mm]: 18.6 - 19

------------------ -------------------------------------------------- -----------------

Thread diameter 3/8' measured with a caliper:

Outer diameter [mm]: 16.3 - 16.6

Inner diameter [mm]: 14.9 - 15.4

We also offer a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
