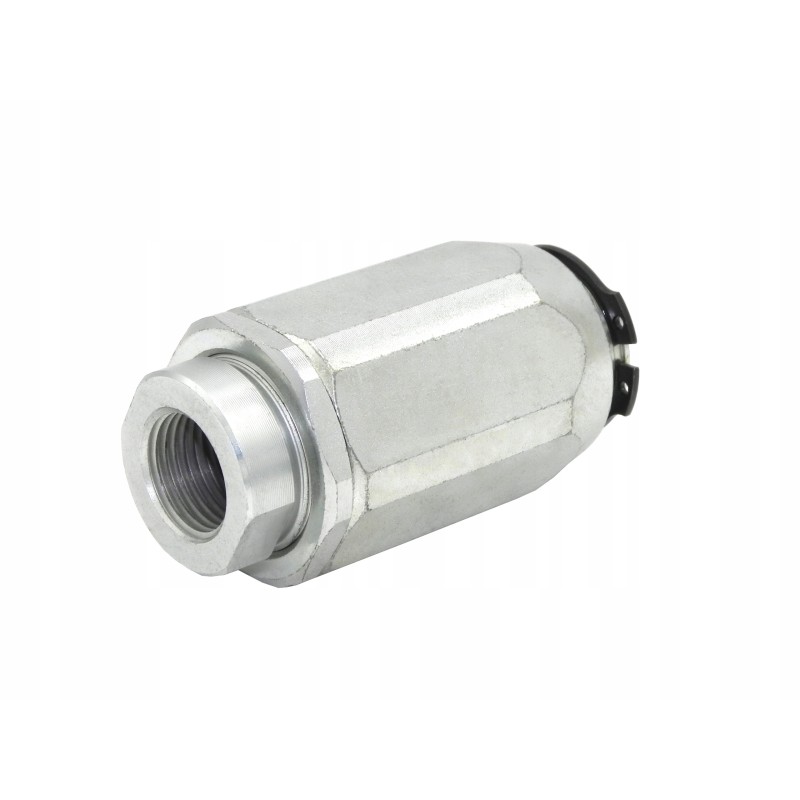

Hydraulic throttling valve in 1 side vrf 3 8 45l

VRF 3/8' HYDRAULIC VALVE, SINGLE-WAY THROTTING WITH REGULATION Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Principle of operation:

Barrel throttling valve regulates (throttles) the flow in one direction , while in the second case the flow is always free. The adjusted flow depends on the change in oil pressure in the system. Adjustment is made by screwing in or unscrewing the adjustment knob, it is possible to secure the settings with a lock nut.

Connection:

Connect the receiver port with valve port B, and the pressure flow with port A.

Technical data:

Maximum flow: 45 l/min

Number of hydraulic holes in the body: 2

Internal threads in the body: 3/8'' [BSP]

Body material: galvanized steel

Permissible maximum pressure: 300bar

Weight: 0.312 kg

Temperature range and oil type:

Permissible ambient temperature : -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Oil type: Hydraulic oil based on mineral oil
