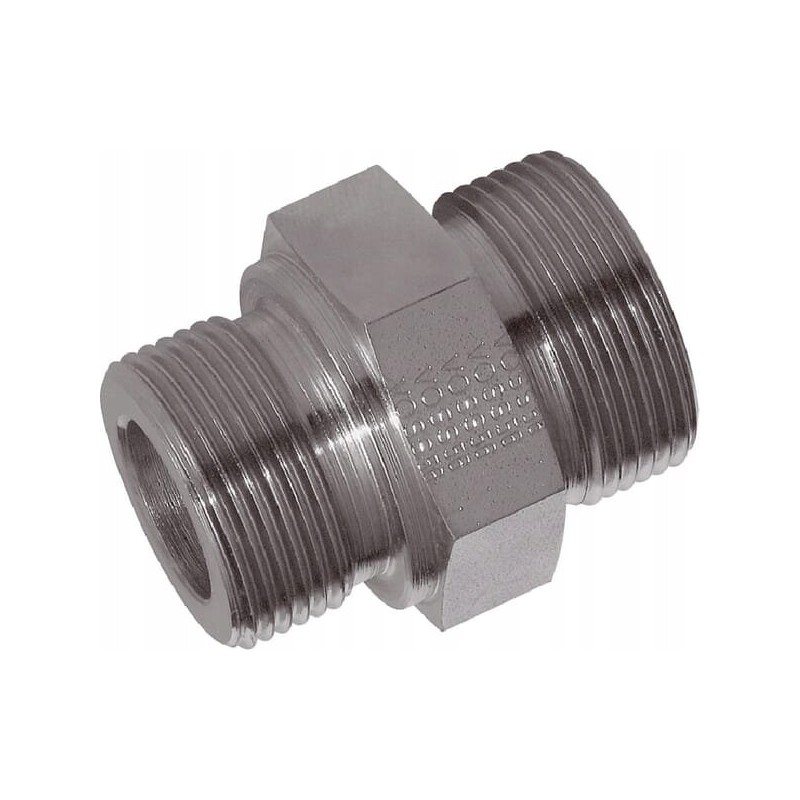

Straight connection m22x1 5 m14x1 5 8l

Straight connection M22x1.5 - M14x1.5 8L Parameters

Part Number: GES8LM22

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 Sides Connection

Connector Type No. 1: Cutting Ring

Connector Type No. 1 - Male/Female: Male

Connection Diameter: 8 mm

Connector No. Thread Diameter 1: M22

Connector Thread Length: 14 mm

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 27 mm

Connector No. 1 Wrench Size: 27.0 mm

Connector No. 2 Type: Thread

Connector No. 2 Male/Female Type: Male

Connector No. 2 Thread Diameter: M14

Connector No. 2 Thread Pitch: 1.50 mm

Connector No. 2 Thread Type: Metric

Connector No. 2 Wrench Size: 17.0 mm

Pipe Diameter : 8 mm

ISO standard: 228

Internal diameter: 6 mm

Length: 31 mm

Max working pressure: 400 BAR

Series: 8L

Max tightening torque: 170 N m

Dimension from the axis of the joint to the end of the next joint 26mm

Dimension from the axis of joint no. 2 to the end of the next joint 11.5mm

DIN standard

- 2353

- 228

- 3852

- 2401

Surface treatment

- Zinc

- Nickel plated
