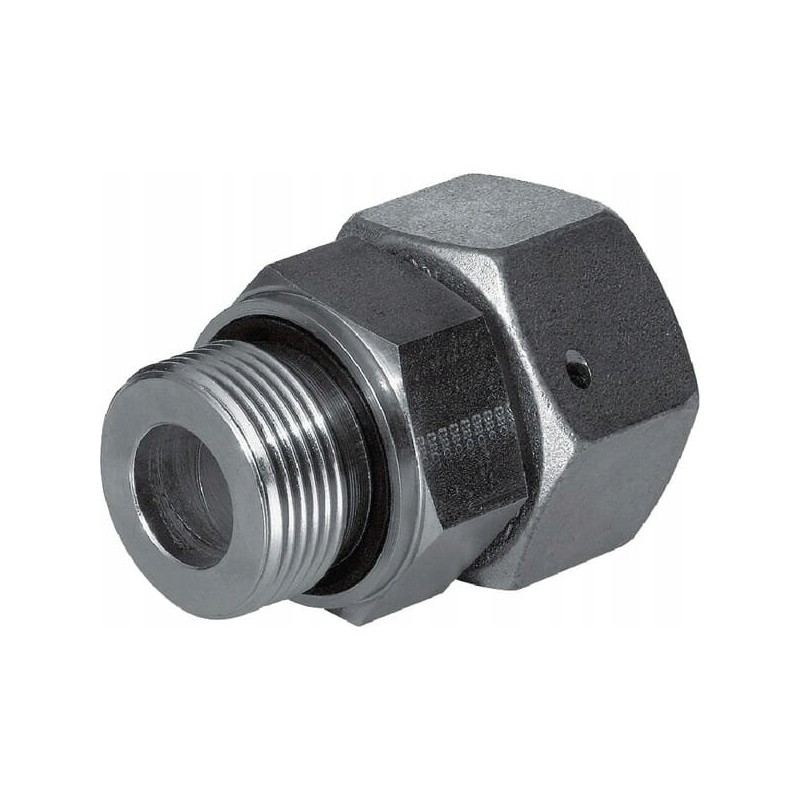

Straight connection with screws and seals m20x1 5 m22x1 5 14

Straight connection with nut and seal M20x1.5 - M22x1.5 14S Parameters

Part number: EGESD14SM20WD

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides connector

Connector type no. 1: Seal ring

Connector type no. 1 - male/female: Male

Connection diameter: 14 mm

Length of connector no. : 14 mm

Connector No. 1 Thread Diameter: M20

Connector No. 1 Thread Pitch: 1.50 mm

Connector Thread Type: Metric

Connector No. 1 Wrench Size: 25.9 mm

Connector No. 1 Wrench Size: 27.0 mm

Connector Type No. 2: Swivel Nut

Connector No. 2 Male/Female Type: Female

Connector No. 2 Thread Diameter: M22

Connector No. 2 Thread Pitch: 1.50 mm

Connector No. 2 Thread Type: Metric

Connector No. 2 Wrench Size: 27.0 mm

Pipe diameter: 14 mm

DIN standard: 2401

Internal diameter: 9 mm

Surface treatment: Zinc, Nickel-plated

Max. working pressure: 630 BAR

Seal material: Nitrile rubber [NBR]

Series: 14S

Tightening torque max.: 130 N m

Advantages

- Limited risk of leakage Product details

- Pre-assembled with O-ring - Optimal connection and functionality with cutting ring

- High corrosion resistance - Hydraulic hoses

- Hydraulic pipes - Available with Viton seal on request Benefits

- Low risk of leakage Dimension from the axis of joint no. 2 to the end of the next joint 36.5mm
