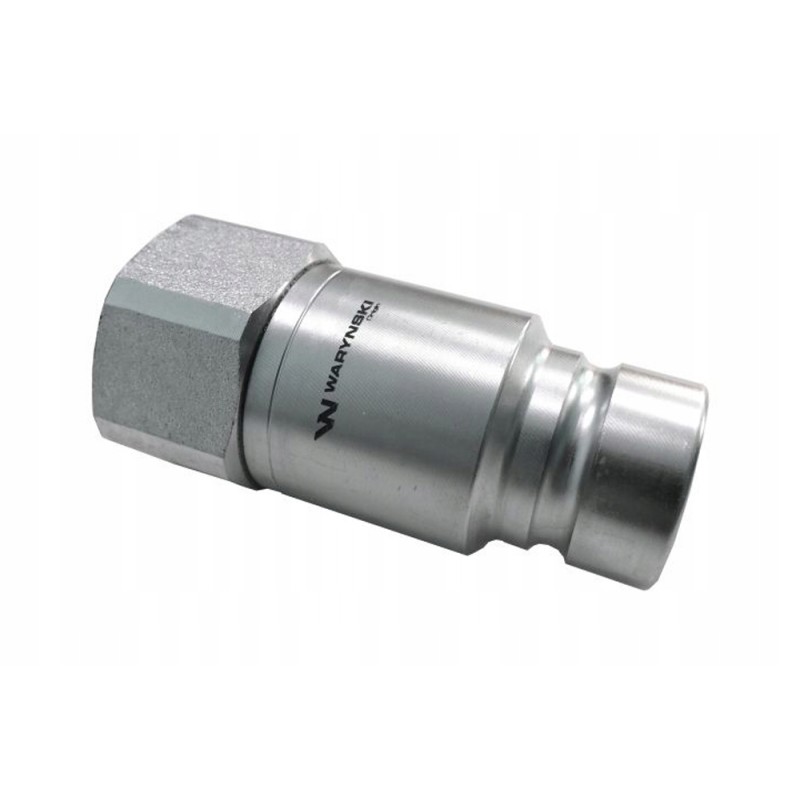

Dry-cut quick connector for 1 2 Warynski male plug

HYDRAULIC QUICK COUPLING, DRY-CUT-OFF PLUG G1/2' BSP INTERNAL THREAD ISO16028 WARYŃSKIHydraulic quick-coupler, long plug with pressure eliminator M22x1.5 male EURO thread Waryński Hydraulic quick-coupler dry-cut-off Waryński - ISO-16028 plug. The quick connectors are designed in accordance with the dimensional and quality requirements of the ISO 16028 F Series standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick connectors produced by different manufacturers in accordance with this standard. Interchangeable with ISO-F quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

*Parameters:

*Thread: Internal 1/2\\\'

*Standard: ISO-16028 (ISO-F)​​​​​​​

*Type: Plug​​​​​​

*Cone - thread: BSP​​​​​​

*Max. working pressure: 30 Mpa / 300 bar​​​​​​​

*Operating temperature: from -20°C to +120°C

*Fits sockets: WIFR12MW

-️ Application: Waryński leak-free "flat-face" (dry-cut) hydraulic quick connectors intended for construction and agricultural machines. The sockets have a pin to prevent accidental disconnection. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The spring mechanism makes it easy to connect the plug to the socket, often with one hand. ,WIFR12MW

* Producer: Waryński
