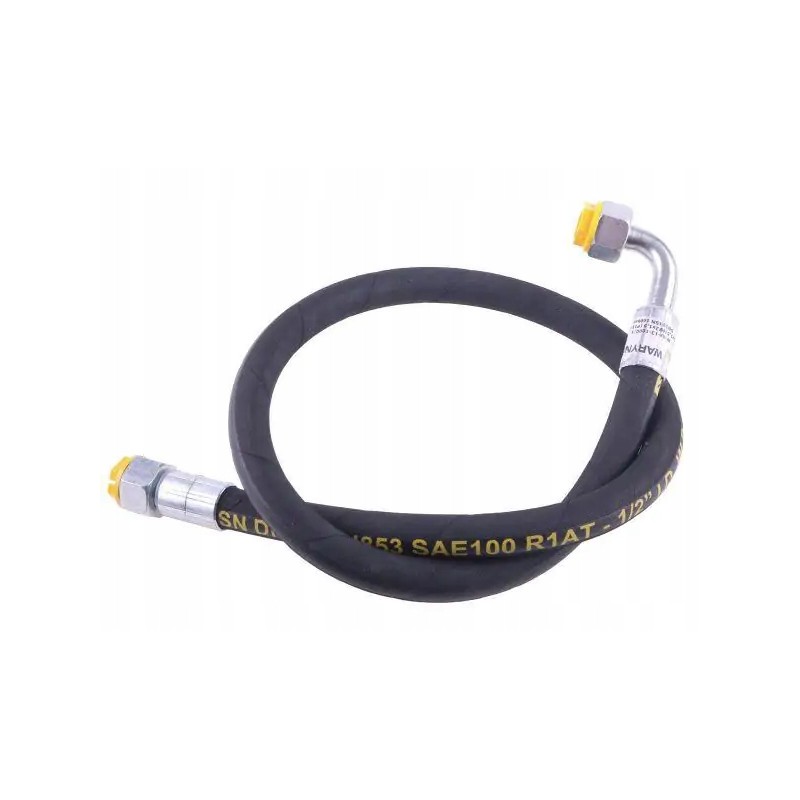

Hydraulic hose thread M22x1 5 straight 90 degrees

Hydraulic hose thread M22x1.5 straight/90 degrees (elbow) L-1000mm DN12-1SN (AK-13-1000 P11P12) 16.0MPa Waryński Index W-AK-13-1000/1 Length: 1000

Operating temperature: from -40 to +100

Fitting 2 / thread: Angled 90 degrees / nut M22x1.5

Fitting 1 / thread: Straight / nut M22x1.5

Waryński hydraulic hose 160 bar (16 MPa) - flexible, multi-functional crimped hose reinforced with a single steel wire braid. Tested with pulsation pressure (medium: hydraulic oil). The Waryński hydraulic hose has protection in the form of yellow plugs on its crimped ends. Thanks to this, no contaminants get inside the lines, which could damage the working elements of the hydraulic system. All plugs are threaded and screwed onto the appropriate type of hydraulic hose end.

EAN 5902287123432

Waryński
