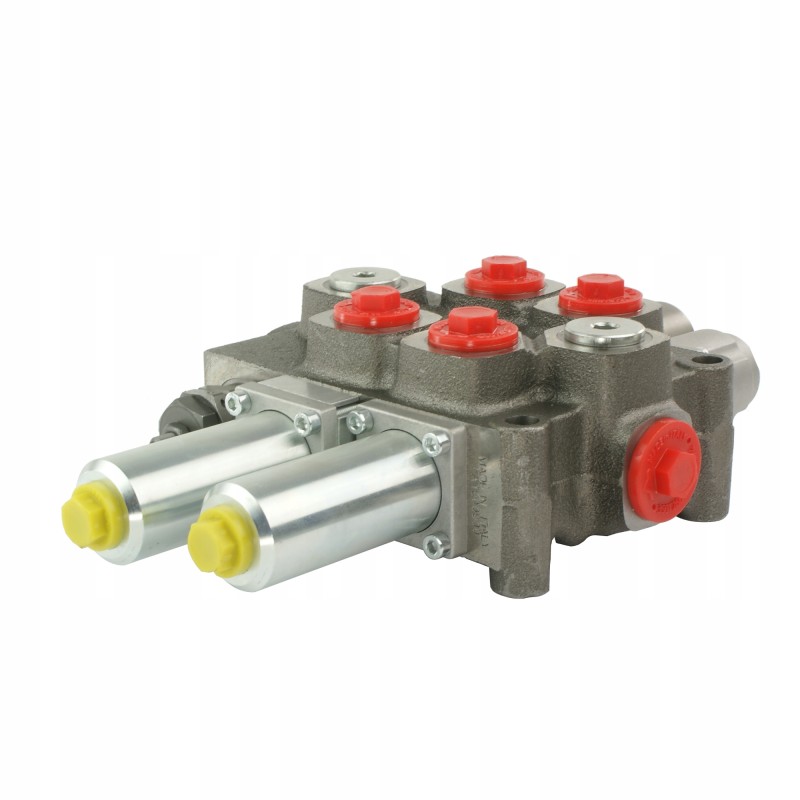

Hydr 60l q45 103 116 distributor for galtech cables

2-SECTION HYDRAULIC DIVIDER Q45 WITH A FLOATING SECTION WITH THE POSSIBILITY OF CONNECTING TO A FIXED CABLE AND JOYSTICK-CONTROLLED PRODUCTION:

Original product of Galtech Italy, symbol: 1.10.32.121

Manufacturer's serial number: Q45/2E-F1S (N)-116/A8-Z1/R8-103/A8/M1-F3D

Application:

It is widely used in hydraulic systems in construction, agriculture and industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

It is used wherever, for reasons of safety, better control comfort and the need to maintain cleanliness, it is necessary to install the distributor outside the cabin. Only the control unit remains in the cabin, e.g. a joystick. This ensures there is no risk of oil leakage in the cabin.

Floating section, also known as free flow, used, among others, for snow plows or TUR front loaders. It causes free movement of the piston rod in hydraulic cylinders, protects against damage elements that have direct contact with the ground, e.g. plow blade.

GENERAL INFORMATION:

Maximum flow up to 60L/min

Recommended to control the distributor using cables and joystick.

Control of single-sided and double-sided cylinders.

Italian production GALTECH, warranty: 2 years

One slider on the section, three-position on a spring, i.e. it returns to the neutral position by itself.

The second slider on the section is four-position on a spring, i.e. it returns to the neutral position by itself, the fourth position of the slider (floating section) is on the latch.

CONNECTION:

Internal threads in the body:

Supply connection port: 1/2''

Return connection port: 1/2''< p>

Section connection ports: 1/2''

Cable connections:

Tube internal thread: M16x1.5

Tip internal thread slider: M6x1.5

PRESSURE RANGE:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

The overflow valve is factory set to 175Bar

Possibility of self-adjustment, full turn change by 30Bar

TEMPERATURE RANGE AND OIL TYPE:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Recommended mineral hydraulic oil, e.g. HL 32 or HL 46
