Distributor hydr 3s 80l 3xa1 badestnost at

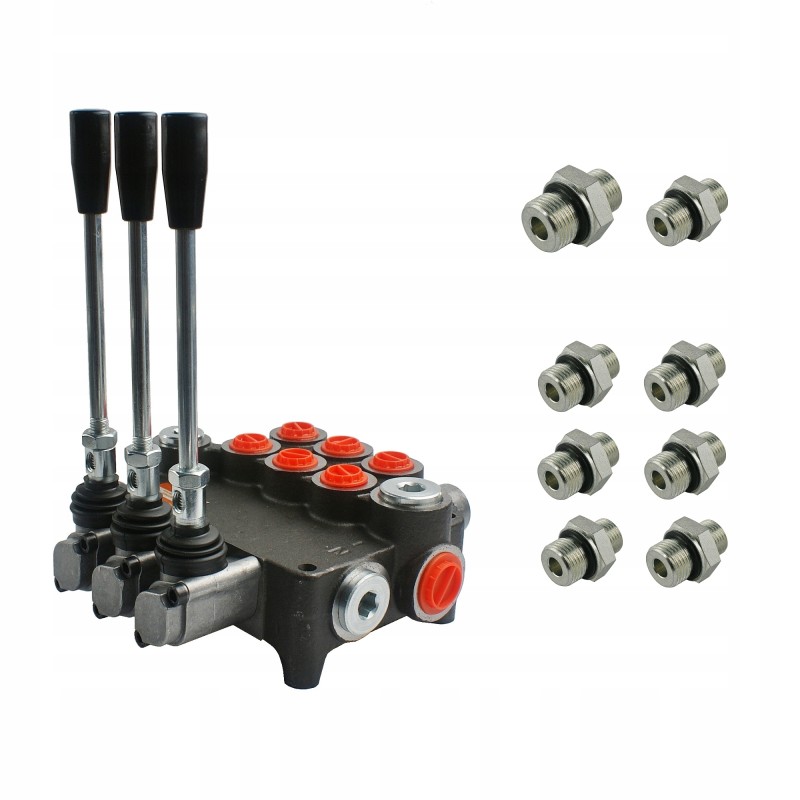

3-SECTION HYDRAULIC DIVIDER, 80L/min, INCLUDED WITH A SET OF CONNECTIONSProduction:

Original product of the Badestnost Bulgaria brand, manufacturer's symbol: 03P80 A1A1A1 GKZ1, symbol: 1.10.10.030.3

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical data:

Recommended oil flow in the system: 0 - 80 l/ min. Example control: three double-acting cylinders.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

All three-position levers (1 - 0 - 2), on a spring, i.e. they return to the vertical on their own:

Neutral position 0 (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (lever set in a forward diagonal position), the actuator piston rod extends.

Working position 2 (lever set obliquely to the rear), the actuator piston rod retracts.

On the right side, a hydraulic diagram of the offered distributor:

Pressure range:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum pressure on sections: 300Bar

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 20 l/min

190 bar at 40 l/min

200 bar at 60 l/min

210 bar at 80 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section

It is recommended to check and set appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar.

Oil types recommended by AGRICOLA:

Thinner, high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

Sealed connections (threads):

Pump power supply (P): BSP 1/2' thread ' - M22x1.5

Return to the tank (T): BSP 3/4'' thread - M27x2

Outlet to sections (A, B): BSP 1/2' threads ' - M22x1.5
