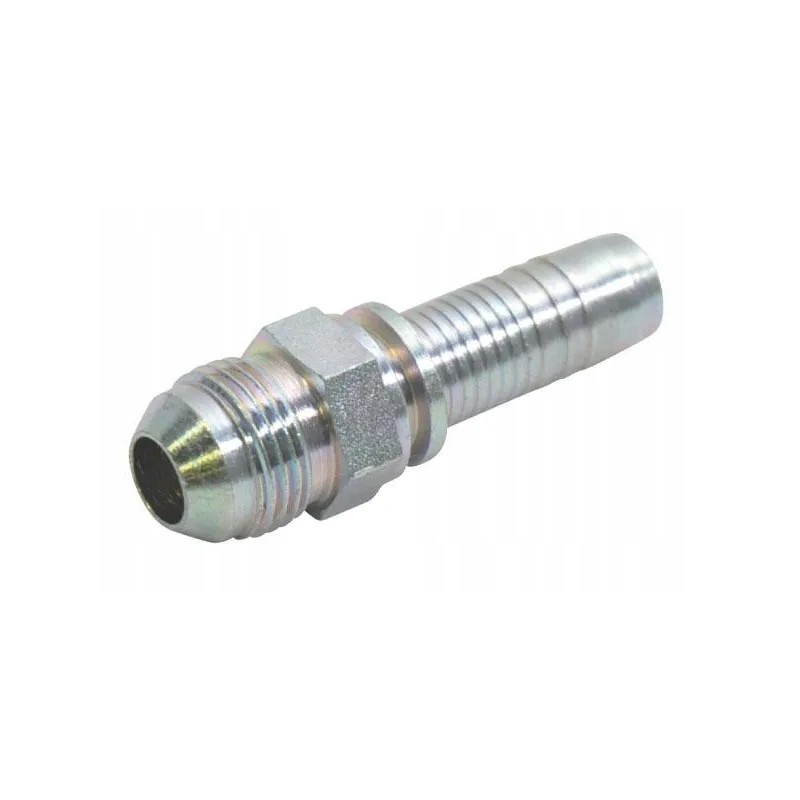

Tip dn20 1 1 16 unf

Fitting DN20-1'1/16 UNF

Part Number: PC2017

EAN: 8719493101324

Unit: Piece

Product Details: Sealing on the cone - metal on metal

Cone angle: 37°

Shape: Straight - 2 sides of the connection

Connection type no. 1: Thread

Connector Type No. 1 - Male/Female: Male

Connector Type No. 1 - Code: AGJ

Connector Thread Diameter: 1-1/16inch

Connector thread type: UNF

CHWrench size for connector no. 1: 27.0mm

Connector type no. 2: Hose connector

Connector type no. 2 - male /female: Male

Connection Diameter No. 2: 3/4inch

Diameter Connection No. 2: 20mm

CDimension from the axis of the connector to the bottom of the next connector: 39, 5mm

Material: Steel

Surface treatment:

Galvanized

White passivated

Connection: External thread JIC (UNF thread) with external cone 74°

Application: Screw connections on the folded edge of the sheet metal

Material: Steel

Type: AGJ
