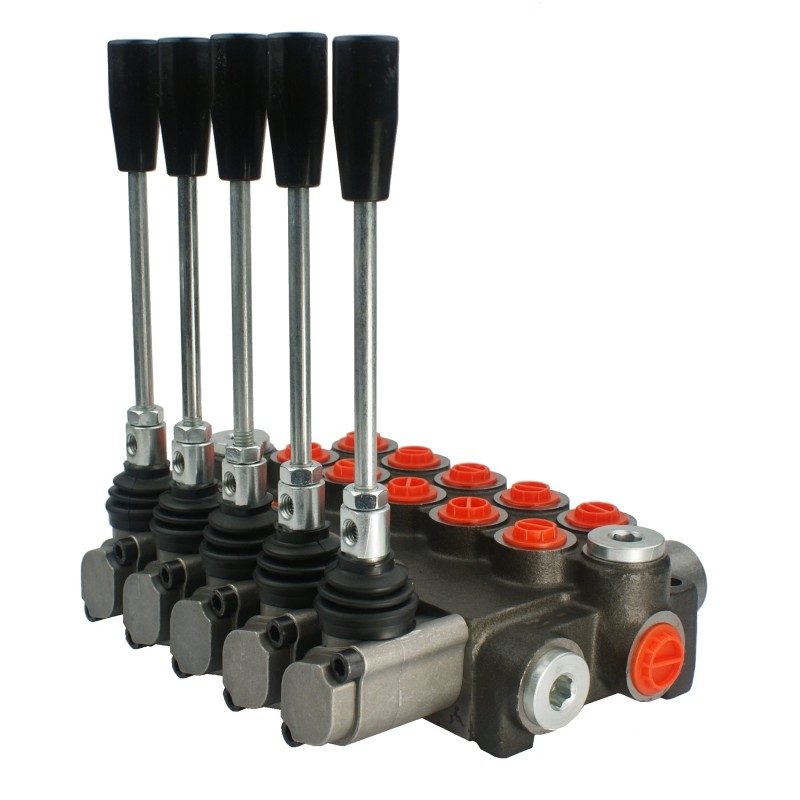

5-SECTION HYDRAULIC DISTRIBUTOR P40 Production:

Original product of the Badestnost brand, manufacturer's symbol: 05P40 5xA1 GKZ1, symbol: 1.10.00.050

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders , excavators, sweepers, industrial machines and other hydraulically controlled devices.

Technical data:

Recommended oil flow in the system: 0 - 40 l/min. Example control: five double-acting cylinders.

Possibility of serial connection to an existing system (pressure sleeve required).

Control:

All three-position levers (1 - 0 - 2), on a spring, i.e. they return to the vertical on their own:

Position 0 neutral (lever set vertically), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (lever set in a forward diagonal position) the actuator piston rod extends.

Working position 2 (lever set in a backward diagonal position) the actuator piston rod retracts.

On the right, a hydraulic diagram offered manifold:

Connection:

Supply from the pump (P1, P2): BSP 1/2'' internal thread

Return to the tank (T1, T2 ): BSP 1/2'' internal thread

Sections (A1, A2, A3, A4, A5, B1, B2, B3, B4, B5): BSP 3/8'' internal thread

Series connection (N): BSP 1/2' internal thread

Pressure range:

Maximum supply pressure: 250Bar

Maximum pressure on the return: 50Bar

Maximum pressure on the sections: 300Bar

It is recommended to check and set the appropriate pressure before starting.

Possibility of self-adjustment, full turn change by 30Bar .

Oil types recommended by AGRICOLA:

Thinner high-quality oil: LOTOS AGROL BOXOL 26

Thicker high-quality oil: FUCHS AGROFARM HYDRATEC HVI 46

Recommended oil temperature range:

Permissible ambient temperature: -40 C to +60 C

Permissible oil temperature: -15 C to +80 C

The opening pressure of the overflow valve increases proportionally with the increase in flow:

180 bar at 10 l/min

190 bar at 20 l/min

200 bar at 30 l/min

210 bar at 40 l/min

Sets for precise pressure measurement can be found in the Manometers - measuring sets section
