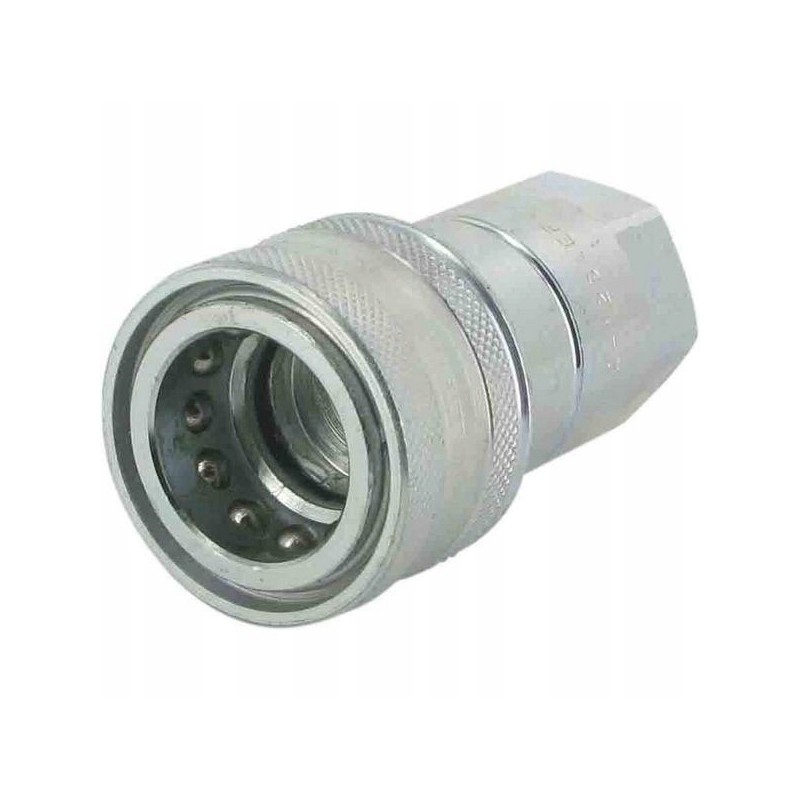

Nv1212saef quick connector ig 3 4 unf

IG 3/4UNF quick connector INDEX: NV1212SAEF

Material: Carbon steel

Specifications: - Easy connection thanks to light springs in the connector sleeve

Benefits: - Easy operation

Features: - Axial reverse actuation of the locking sleeve (single acting) - Induction hardening in high-wear areas - No break-off function - Large number of locking balls

Valve type: Mushroom valve

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Viticulture - Mineral oil based fluids

Size: 1/2 inch

Outer diameter: 38mm

ISO standard: 7241-A

Series: NV

Connection diameter: 38 mm

Surface treatment: White passivated

Total length: 66 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Weight: 258.5g

Working pressure : 300BAR

Type of connector no. 2 - male/female: Female

Possibility of connecting under pressure: No

Operating temperature max: 125°C

Operating temperature min: -25°C

Type of quick connector lock: Balls around the circumference

Connection method: Offset sleeve

Disconnection method: Sleeve offset

Type of connector no. 2: Thread

Thread diameter of connector no. 2: 3/4 inch

Size (code): BG 3

Thread type of connector no. 2: UNF

Number of threads per inch of thread of connector no. 2: 16

Flow at 2 bar pressure: 75l/min

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Female
