Metric elbow connector m22 m22 adjustable aa 90
  • Metric elbow connector m22 m22 adjustable aa 90
  • Metric elbow connector m22 m22 adjustable aa 90
  • Metric elbow connector m22 m22 adjustable aa 90
  • Metric elbow connector m22 m22 adjustable aa 90

Metric elbow connector m22 m22 adjustable aa 90

1509844692981
SM-G
£18.24
Quantity
5 Items

Description

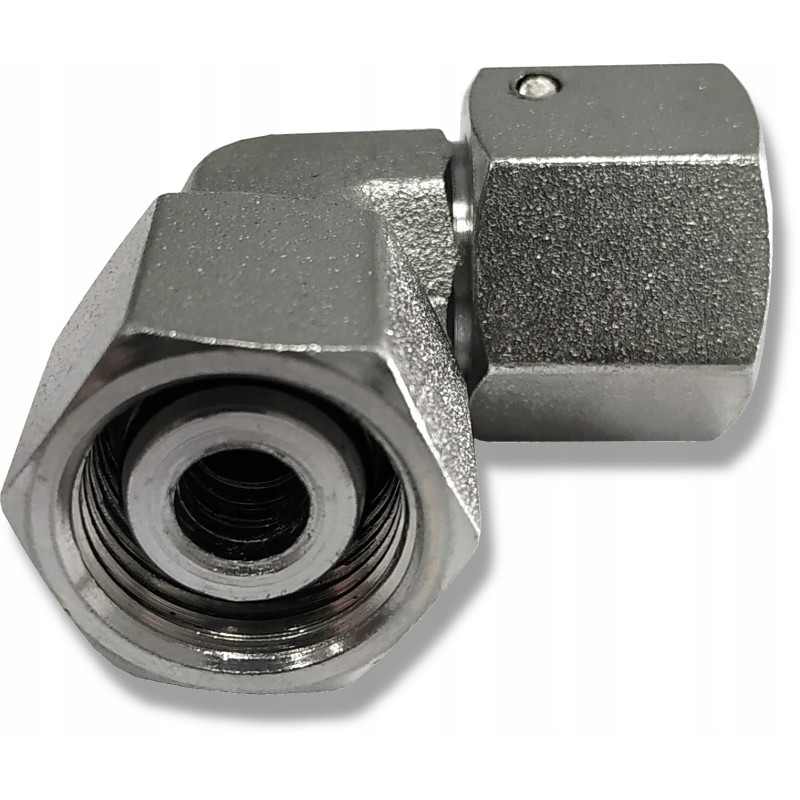

AA 90° hydraulic connector - elbow M22x1.5 - M22x1.5 15LKODES SKRAW MET: [2280]Manufacturer: SM-G (SKRAW MET GROUP)Elbow connector in a standardized light version with ED seals that fully seal the system.

It is used to connect the main components in the hydraulic system (e.g. pump, actuator or distributor) with hydraulic lines.

Application: Perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Technical specifications: Clamping cone angle: 24° (typical for the Polish standard)

Nominal passage diameter: 10 mm

M1 thread: internal metric M22x1.5

M2 thread: internal metric M22x1.5

Nominal pressure: 180 bar

Maximum pressure: 230 bar

Fluid type: hydraulic oil

Connector version: light

Material: weldable steel, galvanized, corrosion-resistant

Product Details
SM-G
1509844692981
HZ-ZK9MRTE0-AA-ML-22x1.5
5 Items
New

Data sheet

Manufacturer
SM-G
Part Number
HZ-ZK9MRTE0-AA-ML-22x1.5
