Rnm 90 clamping dn6 1 2sn fi12 h 12 hydrolider

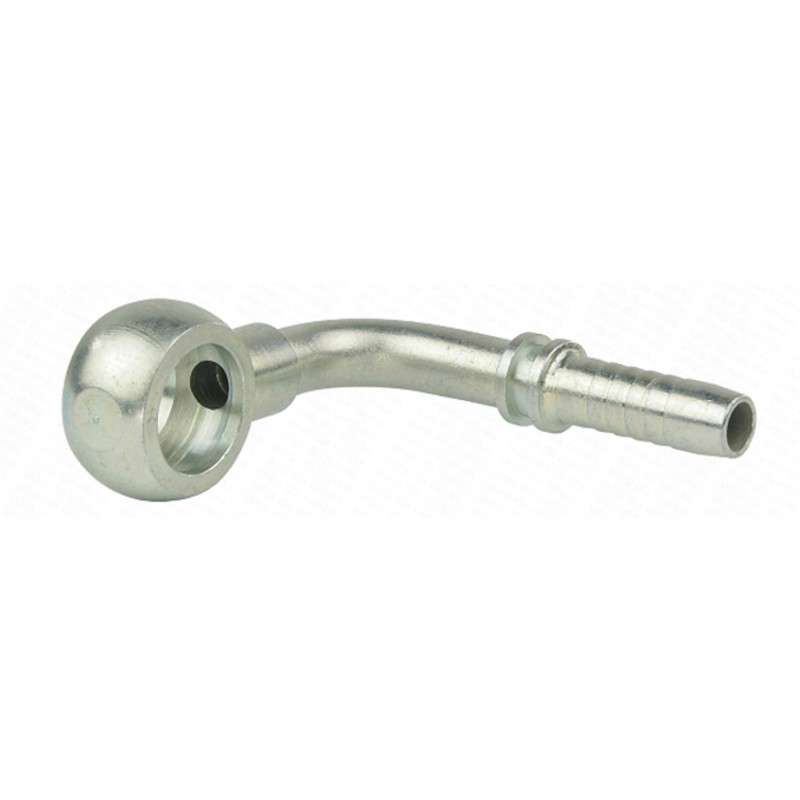

HYDRAULIC CLAMPING NM-90 FI 12mm FOR HYDRAULIC HOSE 1SN / 2SN DN6 Production:

Hydrolider, symbol: 4.14.06.012

Application:

Cuffing used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer:

Agriflex, Semperit, Stomil from the DN6 group with single and double braiding. Fits sleeves from the DN6 group with the marking 1SN and 2SN.

Technical data:

90° angle fitting, tip with a 12mm screw eye. Light version, body height 12 mm. Made according to the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: electrolytic protective coating ZN alkaline - minimum thickness 8µm< p>

Type A chromate passivation, free of chromium (VI) in accordance with DIN EN 15205. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN6 1SN, DN6 2SN or other with an internal diameter of 6mm

Made in Poland for Agricola Hydraulic Component
