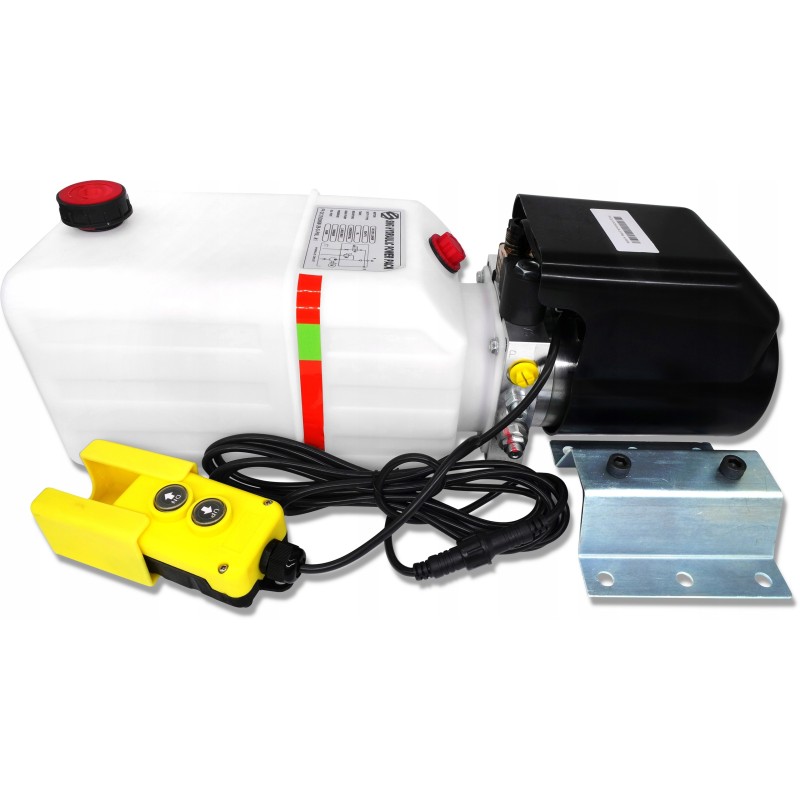

Hydraulic unit power pack 2 0 kw 12v 8l

Hydraulic unit 12V 2.0kW KOD SKRAW MET: [0268] Manufacturer: SM-G (SKRAW MET GROUP) Allows you to control a single-acting actuator.

The actuator extends under the influence of pressure, and retracts using gravity forces and weight lifted.

The unit is complete and ready for operation, just connect the cables and pour oil. Recommended continuous operation no longer than 3 minutes, restarting after 5 minutes of rest.

Application: The unit is perfect for electrically powered machines and devices.

It can be used in agriculture and horticulture , forestry and construction.

It is adapted to work when unloading the cargo box in trailers, dump trucks, hydropacks, races, lifts, loading platforms, car lifts, cranes, agricultural and industrial machines.

Technical specifications: Engine power: 2.0 kW

Electrical voltage: 12 V

Oil tank capacity: 8 L

Maximum operating pressure: 180 bar< p>

Pump capacity: 2.6 cm3/revolution, in this set 7L/min to 12L/min

Internal thread connection: 3/8'

Overflow valve (safety): YES

Dimensions: Unit length: 560 mm

Tank length: 335 mm

Unit width: 170 mm

Tank width: 170 mm

Height of the unit: 195 mm

Tank height (from the base to the tip of the plug): 205 mm

REMOTE CONTROL WITH 2 BUTTONS Solid constructionThis is a dedicated a two-button remote control used mainly in hydraulic units powered by 12V / 24V.

Equipped with a mounting pocket that, if necessary, can be attached to two holes with a diameter of 5 mm.

On the back The remote control also has magnets thanks to which the remote control can be attached to metal elements.

Additionally, the remote control contains a cable of approx. 4.4 m with a screw-on 3-pin plug.

All elements are made only from durable, high-quality materials.

Each unit has a working diagram of the hydraulic system stuck on it. The set includes: pump

electric motor

connecting plate

tank

controller

The unit additionally has a plastic cover for the engine and a mounting kit.

Legend of markings:+ Power supply (positive potential), connected directly to the battery

- Power supply (negative potential), connected directly to the battery

A - connection port (G3/8')

B - regulation of descent speed

C - regulation of oil pressure
