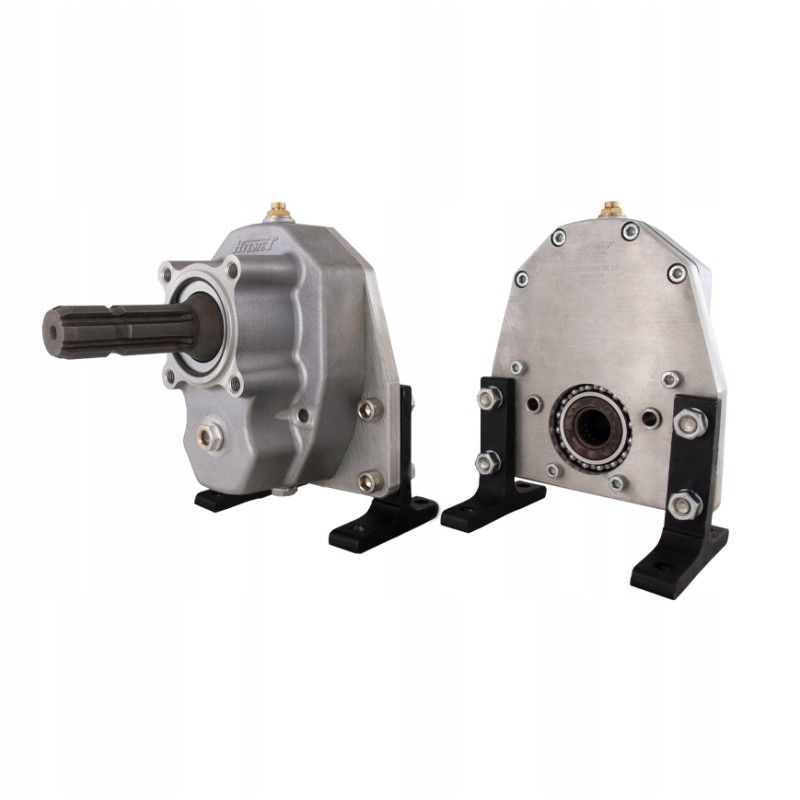

Durable gear UNHZ 500 hylmet tuchola

MODERN TRANSMISSION FOR UNHZ (new type) - 30kW HYLMET FOR GEAR PUMPS FROM THE PZ30-WOMPZ30-PTO.XT.NE SERIES 1:3 Durable, failure-free gear that you can rely on for years. Product 100% Polish production.

A gear based on helical teeth, guaranteeing quiet and comfortable operation (-15dB) and high transmitted power.

Multipliers of this type are used as replacements for old, worn-out gears for the UNHZ loader and in hydraulic systems intended for agriculture.

HYLMET gear transmissions, thanks to their thick, solid housing (minimum thickness 7 mm) and as many as 7 bearings, are ideal for heavy-duty applications.

The multiplier has standard mounting holes for the UNHZ loader frame.

FREE!! FREE gear oil!! Technical data: Multiplier power: 30 kW (guaranteed)

Gear ratio: 1:3.0

input revolutions: 540

revolutions at the output: 1620

max torque at the input 530 Nm

max torque at the output 175 Nm

Possibility of installing PZ30-WOM series pumps, aluminum and cast iron, designed for continuous work with heavy load.

PTO shaft: 1' 3/8 DIN9611 - 6 cutters

The gearbox works with gear pumps manufactured by HYLMET from the series:

PZ30- PTO

PZ30-PTO.NE

PZ30-PTO.NE-G

PZW

Parameters of CYKLOP gear sets depending on the pump hydraulic:

- pump volume 17cm3/rev. - flow rate 27 liters/minute - nominal pressure 250 bar - power requirement 11.25 kW

- pump volume 23 cm3/rev. - flow rate 37 liters/minute - nominal pressure 250 bar - power requirement 15.40 kW

- pump volume 27 cm3/rev. - flow rate 43 liters/minute - nominal pressure 250 bar - power requirement 17.90 kW

- pump volume 35 cm3/rev. - flow rate 56 liters/minute - nominal pressure 200 bar - power requirement 18.70 kW

- pump volume 43 cm3/rev. - flow rate 68 liters/minute - nominal pressure 200 bar - power requirement 22.70 kW

- pump volume 51 cm3/rev. - flow rate 81 liters/minute - nominal pressure 200 bar - power requirement 27.00kW

- pump volume 61cm3/rev. - flow rate 100 liters/minute - nominal pressure 180 bar - power requirement 30.00 kW

- pump volume 82 cm3/rev. - flow rate 130 liters/minute - nominal pressure 140 bar - power requirement 30.00 kW

Comparison of 'old type' pumps with PZ30-WOM series pumps. A wide selection of pumps allows you to tailor the set to your needs and comfortable operation with higher efficiency and pressure than standard pumps.
