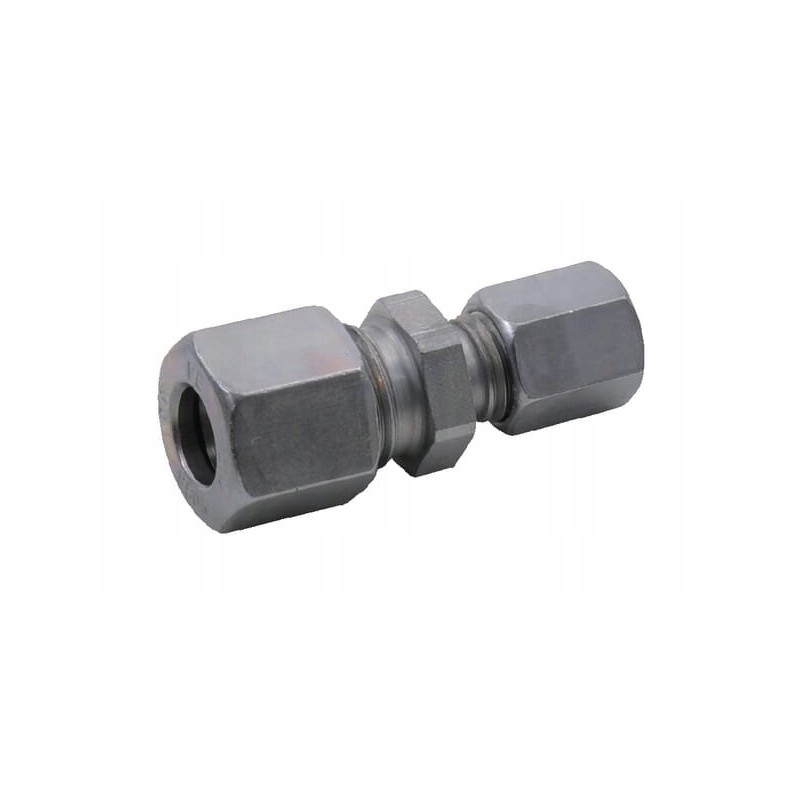

Straight threaded connector m16x1 5 10l m14x1 5 8l

Straight threaded connector M16x1.5 10L - M14x1.5 8L Parameters

Part number: GV108L

Unit: Piece

Manufacturer: Voss

Cone angle: 24 °

Shape: Straight - 2 sides of connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 8 mm

Connector No. 1 thread diameter: M14

Connector No. 1 thread pitch: 1.50 mm

Type Connector Thread: Metric

Connector #1 Wrench Size: 17mm

Join #1 Wrench Size: 17.0mm

Connector #2 Type: Cutting Ring< p>

Connector no. 2 type - male/female: Male

Connection no. 2 diameter: 10 mm

Connection no. 2 thread diameter: M16

Connector No. 2 Thread Pitch: 1.50 mm

Connection No. 2 Thread Type: Metric

Connector No. 2 Wrench Size: 19.0 mm

Distance Between Connectors: 12 mm

DIN standard: 2401

Total length: 42 mm

Max working pressure: 500 BAR

Advantages

- Cutting ring 2S

Product details

- Cutting ring 2S - Optimal connection with the cutting ring and perfect function

- High corrosion resistance - Hydraulic hoses

- Hydraulic pipes

Pipe diameter

- 10 mm

- 8 mm

Series< p>

- 10L

- 8L
