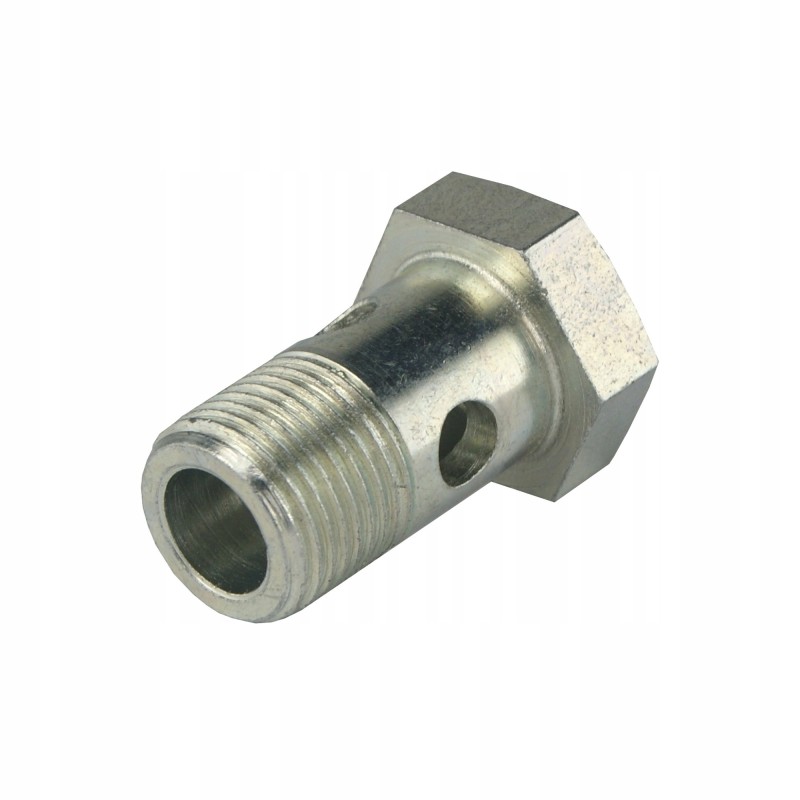

Hydraulic screw with eyelet 3 8 eyelets

HYDRAULIC EYELET SCREW FI 3/8' Production:

Original product of the Hydrolider brand, symbol: 1.60.51.238.1

Application:

It has a wide range of applications in systems hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The screw fits connections with an eyelet body. It connects the pump, cylinder, distributor, etc. with hydraulic lines.

The eyelet connection system is used where space is limited and a pipe with a traditional elbow does not fit.

The eyelet connection system :

To properly connect the screw, it is necessary to use an eyelet connection and two sealing washers.

The first washer goes between the connector body and the head of the eyebolt. The second one comes between the body of e.g. a pump or cylinder and the connection body (photo).

Technical data:

Material: weldable, galvanized steel, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Liquid type: hydraulic oil

Thread: external inch 3/ 8'

Required eye diameter: 3/8'

Total length without head: 31mm

Length of the smooth part: 16mm

Length threaded part: 15mm

Head height: 7mm

Wrench size: 22
