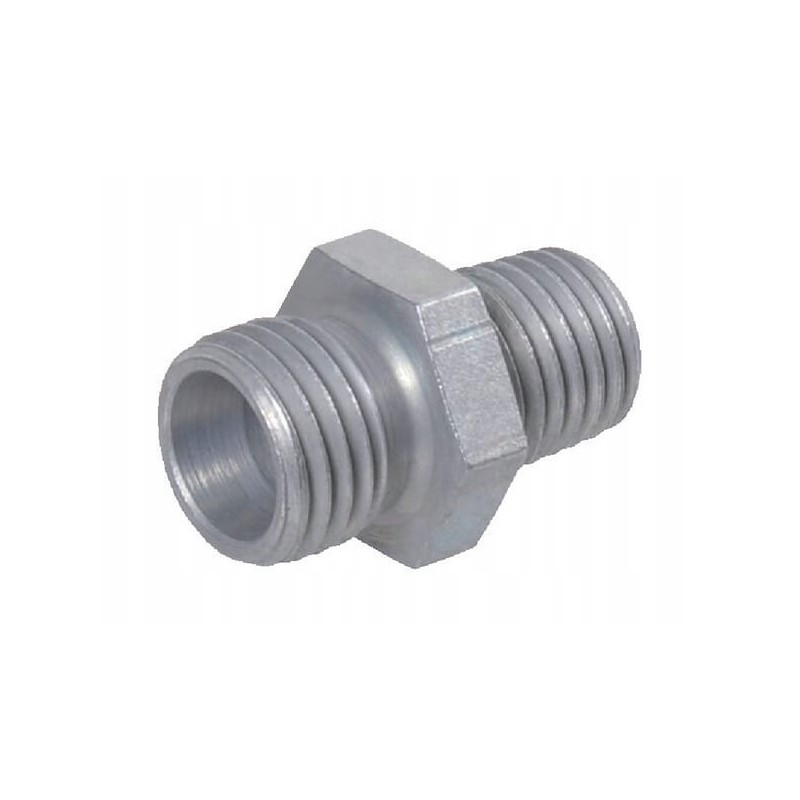

Threaded connector m10x1 6ll 1 8 npt

M10x1 6LL 1/8' NPT Threaded Connector Parameters

Part Number: GES6LL18NPT

Unit: Piece

Manufacturer: Voss

Shape: Straight - 2 sides of connection

Connector type no. 1: Cutting ring

Connector type no. 1 - male/female: Male

Connection diameter: 6 mm

Connector Thread Diameter: 1/8 inch

Connector No. 1 Thread Diameter: M10

Connector Thread Length: 6.7 mm

Pitch thread of connector no. 1: 1.00 mm

Type of connector thread: NPT

Wrench size for connector no. 1: 12.0 mm

Type of connector no. 2: Thread

Connection No. 2 Type - Male/Female: Male

Connection No. 2 Thread Diameter: 1/8 inch

Connection No. 2 Thread Type: NPT

Wrench size for connector no. 2: 11.0 mm

Pipe diameter: 6 mm

ANSI standard: B1.20.1-1983.

ASME standard: B1.20.1-1983.

DIN standard: 2353

Inner diameter: 6 mm

Length: 21.9 mm

Working pressure max.: 100 BAR

Series: LL

Tightening torque max.: 15 N m

Specifications

- Ring 2S cutting

Application

- Hydraulic hose

- Hydraulic lines

Properties

- Optimal connection with the ring cutting action and excellent performance

- High corrosion resistance

Surface treatment

- Zinc

- Nickel-plated
