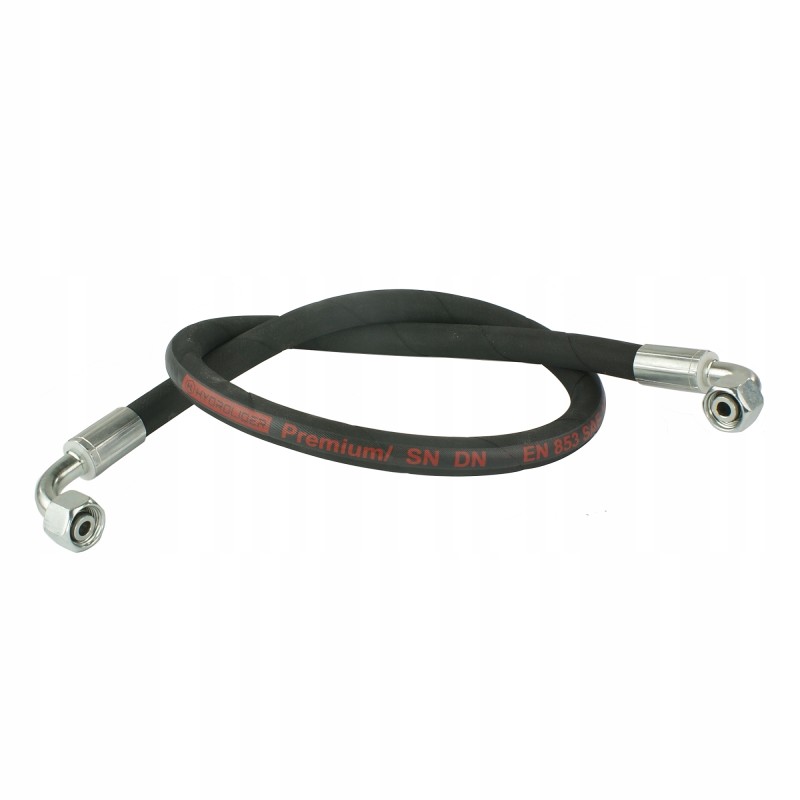

Hydraulic hose cable dn8 16 16 kk 900 360bar

HYDRAULIC HOSE ZAKUTYP KK8/2-900.16/16 Production:

Original HYDROLIDER brand hose, symbol: 1.70.21.0900

Application:

Universal, pressure hydraulic hose with self-sealing clamp when tightening. It is widely used in hydraulic systems in agriculture and industry. It is used to connect basic hydraulic components, including: pumps, distributors, tanks, actuators, engines, etc.

The cable can be used in hydraulic systems with a maximum pressure of up to 360 bar and a maximum flow of up to 30L/min, in installations operating indoors and outdoors.

Technical data:

Hydraulic cable it is sealed, blown out (cleaned with pressure from the compressor), ready to be connected and operated in the system. The finished hose includes: an original, double-reinforced and flexible hose from the Hydrolider brand and fittings from a Polish manufacturer. All elements are resistant to weather conditions, cracking and corrosion.

Cable length with ferrules: 900mm

Type of ferrules: KK, 90-degree angle on both sides, M16x1.5 nuts

Number of braids: double braid (2SN)

Maximum pressure: 360Bar

Recommended flow in the system: from 1 to 30L/min

Internal diameter of the passage: (DN8): 8 mm

External diameter of the hose: 16 mm

Threads and clamping cone fit all connectors and connections in our offer.
