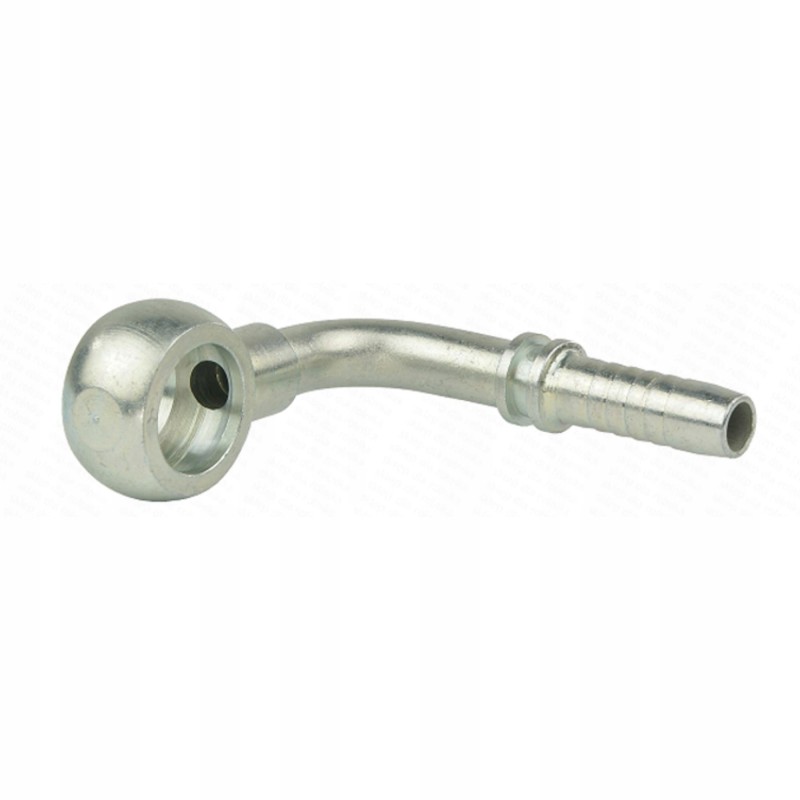

HYDRAULIC CLAMPING NM-90 FI 16mm FOR HYDRAULIC HOSE 1SN / 2SN DN8 Production:

Hydrolider, symbol: 4.14.08.016

Application:

Cuffing used in the production of hydraulic hoses, has a wide range of applications in agriculture, industry and forestry. Designed to be attached to all hoses from our offer:

Agriflex, Semperit, Stomil from the DN8 group with single and double braiding. Fits sleeves from the DN8 group with the marking 1SN and 2SN.

Technical data:

90° angle fitting, tip with a 16mm screw eye. Light variety, body height 15mm. Made in accordance with the following standards: PN-65/M 73140, PN-65/M-73141, DIN 3901, DIN 3902. Standard coating of our elements for the production of cables: Electrolytic protective coating ZN alkaline - minimum thickness 8µm

Passivation chromate type A, free of chromium (VI) in accordance with the DIN EN 15205 standard. Thanks to the technology used, all our crimping elements have excellent protection against difficult weather conditions, ensuring durability and long service life.

Operating temperature range: -40°C to 100°C

Recommended hydraulic hose: DN8 1SN, DN8 2SN or other with an internal diameter of 8mm

Made in Poland for Agricola Hydraulic Component
