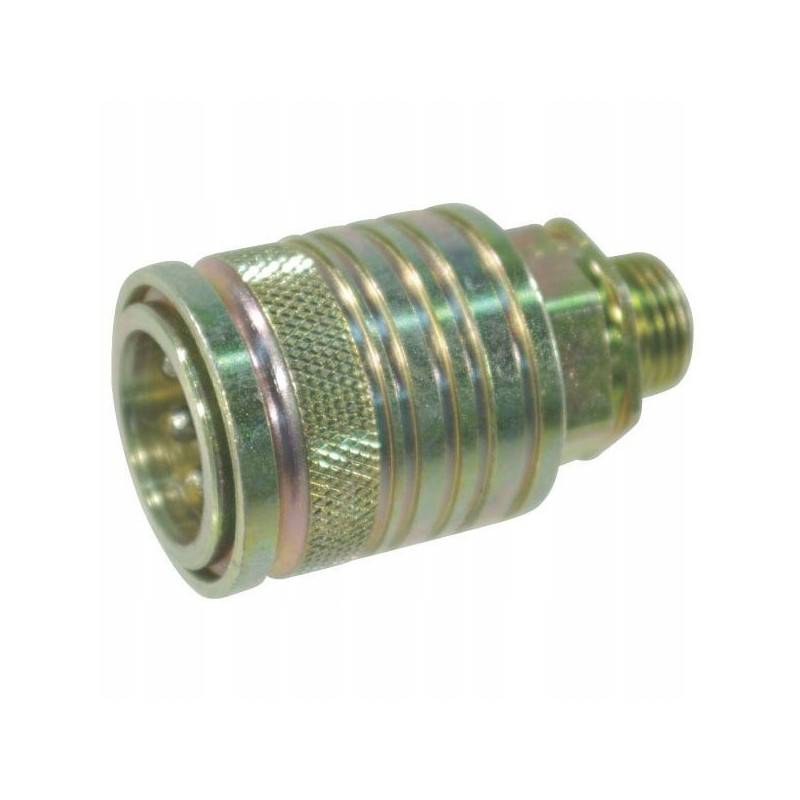

Skpf12l18 quick connector iso 12 5 m18x1 5 12l

ISO 12.5 M18x1.5-12L quick connector - socket, HP101L1218 INDEX: SKPF12L18

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function - With double-sided shut-off - Axial actuation of the locking sleeve in both directions (double-sided action)

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Mineral oil based fluids

Outer diameter: 38 mm

ISO standard: 7241-1-A

Connection diameter: 20.5 mm

Surface treatment: White passivated

Total length: 70 mm

Seal material: Nitrile rubber [NBR]

Teflon (PTFE)

Operating pressure: 250BAR

Possibility of connecting under pressure: No

Max operating temperature: 100°C

Min operating temperature: -30°C

Connection type: socket

Connection diameter no. 2: 12mm

Thread pitch of connector no. 2 : 1.5mm

Connector type no. 2: Thread

Connection thread diameter no. 2: M18

Size (code): BG 3

Connection thread type no. 2: Metric

Connector type no. 1: Quick connector

Connector type no. 1 - male/ feminine: Masculine
