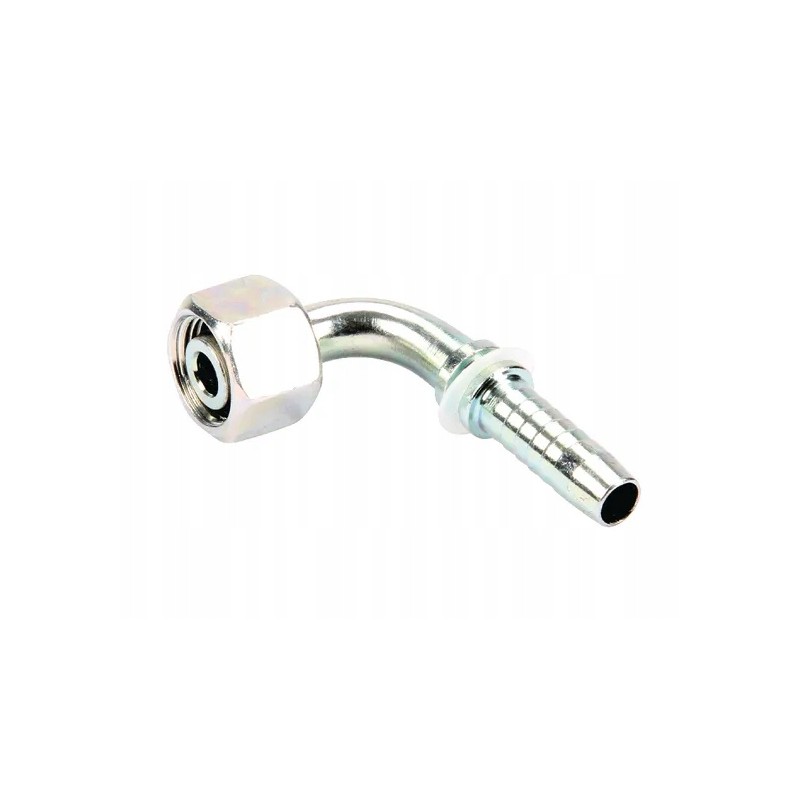

Pglo102290 tip dn10 m22x1 5 15l 90

PGLO102290 Tip DN10-M22x1.5-15L-90°EAN

8716106441389

Cone angle

24 °

Shape

Elbow - 2 sides of connection

Connector type no. 1

Conical

Connector type no. 1 - male/female

Female

Connector type no. 1 - code

DKOL

Connector no. 1 thread diameter

M22

Pitch thread of connector no. 1

1.50 mm

Wrench size for connector no. 1

27.0 mm

Type of connector no. 2

Hose connector

Connector type no. 2 - male/female

Male

Connection no. 2 diameter

3/8 inch

Diameter of connection no. 2

10 mm

Dimension from the axis of the connector to the bottom of the next connector

35.8 mm

Dimension from the axis of joint no. 2 to the end of the next joint

38.5 mm

Angle

90 °

Material

Steel

Surface treatment

Galvanized

White passivated

Series

15L

OE reference number

H1221593-062200

Connection

xx

Type

DKOL
