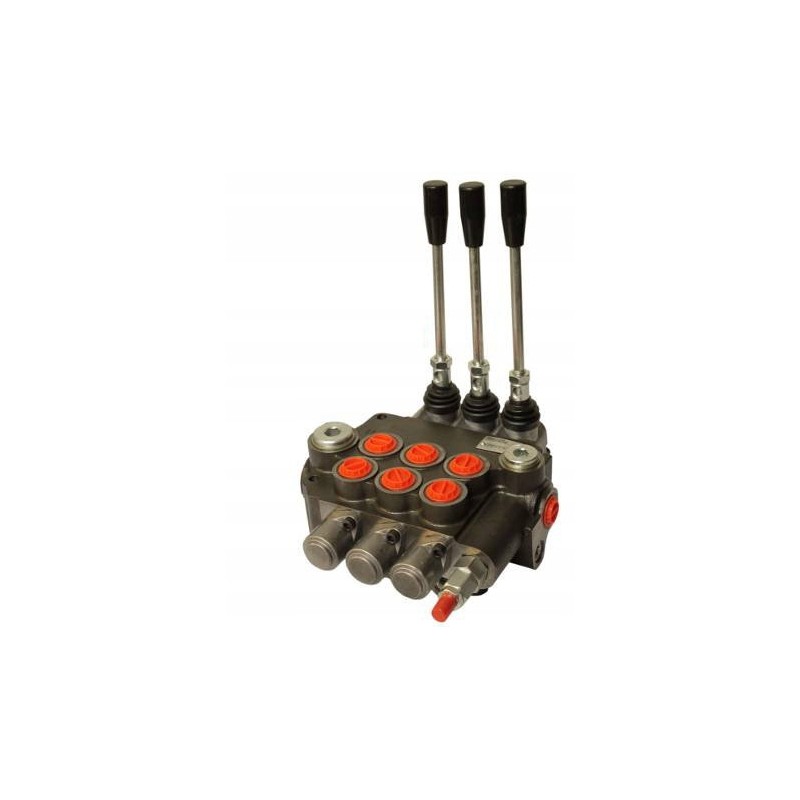

3-section distributor 80l, 3x double-sided section

3-section hydraulic distributor 80L, double-sided DDD Badestnost MIZAR number: 20034

3-section hydraulic distributor - 3 double-sided sections DDD 80L Badestnost

Universal, monoblock, three-section distributor for applications in power hydraulics, is widely used in hydraulic systems in construction, agriculture and industry.

This distributor can be used in various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclops, HDS loaders, construction, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Number and type of sections:

3 DOUBLE-SIDED sections - regular (D) - for controlling double-acting cylinders

Control:

Three-position lever on a spring (it returns to the neutral position by itself).

Neutral position 0, the cylinder piston rod is standing - the oil goes to the overflow.

Working position 1, the cylinder piston rod extends.

Working position 2, the cylinder piston rod retracts.

Technical information:

Manufacturer: Badestnost

Control: levers mounted on the distributor

Ambient temperature range: -40C...+60C

Oil temperature range: -15C...+80C

Capacity: 80L/ min

Maximum supply pressure: 250 bar

Maximum return pressure: 50 bar

Maximum section pressure: 300 bar

Connections:

Section outputs (A and B) - 1/2' BSP

Power supply (P*) - 1/2' BSP

Return (T*) - 3/4' BSP

Pressure outlet (N*) -3/4' BSP

* - markings embossed on the distributor housing for identification of connections

The distributor is equipped with a non-return valve and an overflow valve, which also serves as a safety valve.

Why Badestnost?

Badestnost is a Bulgarian company operating continuously since 1902. It is one of the first representatives of the dynamically developing industry in the Black Sea country. Since 1978, it has specialized in the production of hydraulic distributors. Highly qualified staff and many years of experience guarantee high quality and reliability of products that are widely used in agriculture, where control of the flow direction of the working fluid is required. Since 2015, the company has been a member of the American National Fluid Power Association, whose goal is the constant development of fluidized bed technology by over 300 manufacturers, distributors and suppliers of hydraulic systems and components from around the world!

MIZAR number: 20034
