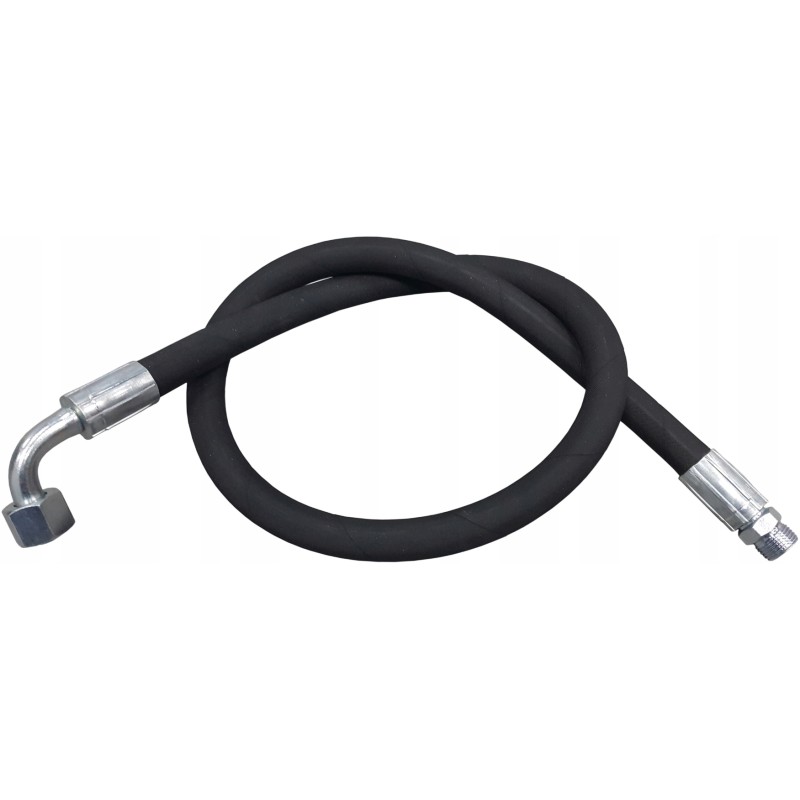

Hydraulic hose cable dn6 14 14 kb2250 400bar

HYDRAULIC HOSE ZAKUTYP KB 6/2/2250/14-14[9076]

Application:

Hydraulic hoses are perfect for hydraulically powered machines and devices. They can be used in agriculture, horticulture, forestry and construction.

Pressure hydraulic lines are self-sealing after tightening. They are used to connect individual components of hydraulic systems, including actuators, distributors, tanks and engines. Due to its versatility, it can be used in any system with a maximum oil pressure of 400 bar. It is intended for indoor and outdoor use.

Technical data:

The cable is armored, flexible and resistant to weather conditions.

The hose is crimped and ready for installation.

Type of fittings: KB on one side K - angle connector with internal thread M14x1 .5, on the other side B - straight connector with external thread M14x1.5

Inner diameter of the passage: (DN6): 6 mm

Outer diameter of the hose: 14.2 mm (+/-0.3 mm)

Number of braids: 2

Cable length with ferrules: 2250mm

Maximum pressure: 400bar

The crimped hydraulic hose consists of:

Hydraulic hose 2SN-1/4' DN6 [2706]

2x sleeve for 1/4` 2SN hose [2707]

Angle ferrule 90' GW M14x1, 5 for a 1/4' hose [2711]

Straight ferrule GZ M14x1.5 for a 1/4' hose [2713]

Couplings and connections suitable for the hydraulic hose can be found in our other auctions.
