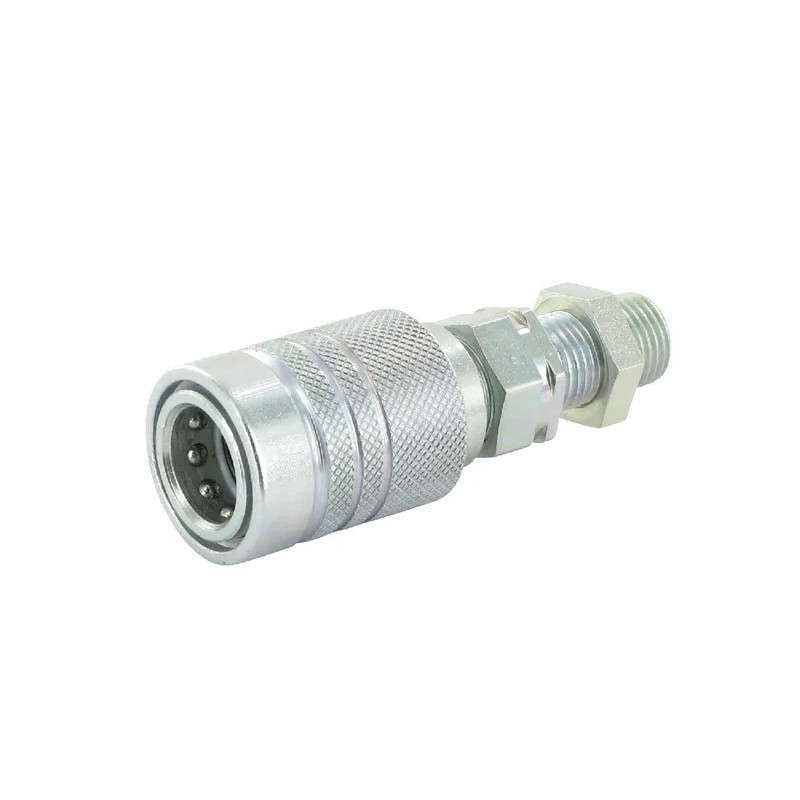

Quick connector socket skp f 1 2 bulkhead thread

SKPF12N18 Quick connector socket SKP-F 1/2' bulkhead thread M18x1.5 12L Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil-based fluids

Features

Standard agricultural connector

Push & Pull principle

Breaking function

With shut-off on both sides

Axial actuation of locking sleeve in both directions (double acting)

Shape Straight - 2 connection sides

Size (code) BG 3

Connector type no. 1 Quick connector

Connector type no. 1 - male/female Female

Connection diameter 20.6 mm

Type connector no. 2 Thread

Connector no. 2 type - male/female Male

Connection no. 2 diameter 12 mm

Connection no. 2 thread diameter M18

Connector no. 2 thread pitch 1.50 mm

Connection no. 2 thread type Metric

Possibility of connection under pressure No

ISO 7241-1-A standard

Outer diameter 38 mm

Total length 85 mm

Material Steel

Surface treatment White passivated

Working pressure 250 BAR

Working temperature max. 100 °C

Operating temperature min. -30 °C

Seal material

Nitrile rubber [NBR]

Teflon (PTFE)
