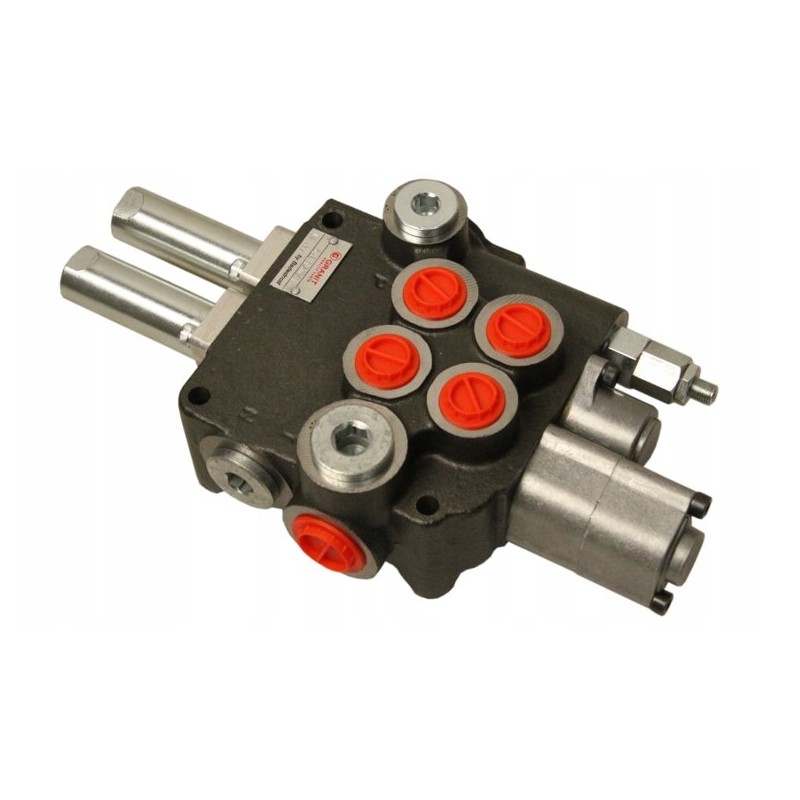

2-section distributor, 80 l sec, floating on cables

2-section hydraulic distributor with a floating section for cables 80L Badestnost MIZAR number: 28767

2-section hydraulic distributor with a floating section for cables 80L Badestnost

It can be used in many different machines and devices using hydraulic drives. Used, among others, for expanding or modifying hydraulic systems in Fiat, Zetor, Case, Ford tractors as well as in various agricultural machines, municipal construction machines, etc. Perfect for operating a snow plow.

Number and type of sections in order from the valve:

1 section - regular (unmodified) - allows you to control a double-acting actuator

1 section - floating

The undoubted advantage of the floating section is the ability to work with both double-acting actuators (foldable harrows, reversible plows, etc.) and single-acting cylinders (tipping cylinders, hydraulic lifters, etc.).

The floating section has 4 positions:

0 - distributor in neutral position,

1 - extension of the actuator

2 - return of the double-sided actuator

3 - lowering of the single-sided actuator (in the case of a double-sided actuator - this position allows it to 'float', which is used, for example, in plows snow)

In the floating position - 3 - the section has a latch that holds the distributor lever in this position (the so-called free flow)

Technical information:

Manufacturer: Badestnost

Control: joystick or cables (Bowden cables)

Operating temperature in the range : from -40°C to +60°C

Maximum pressure: 300 bar

Oil flow: 80L/ min.

Connections:

Aclinators: 1/2'

Supply: 1/2'

Return: 3/4'

The manifold is equipped with a non-return valve and a valve overflow, which also serves as a safety valve.

Why Badestnost?

Badestnost is a Bulgarian company that has been operating continuously since 1902. It is one of the first representatives of the dynamically developing industry in the Black Sea country. Since 1978, it has specialized in the production of hydraulic distributors. Highly qualified staff and many years of experience guarantee high quality and reliability of products that are widely used in agriculture, where control of the flow direction of the working fluid is required. Since 2015, the company has been a member of the American National Fluid Power Association, whose goal is the constant development of fluidized bed technology by over 300 manufacturers, distributors and suppliers of hydraulic systems and components from around the world!

MIZAR number: 28767
