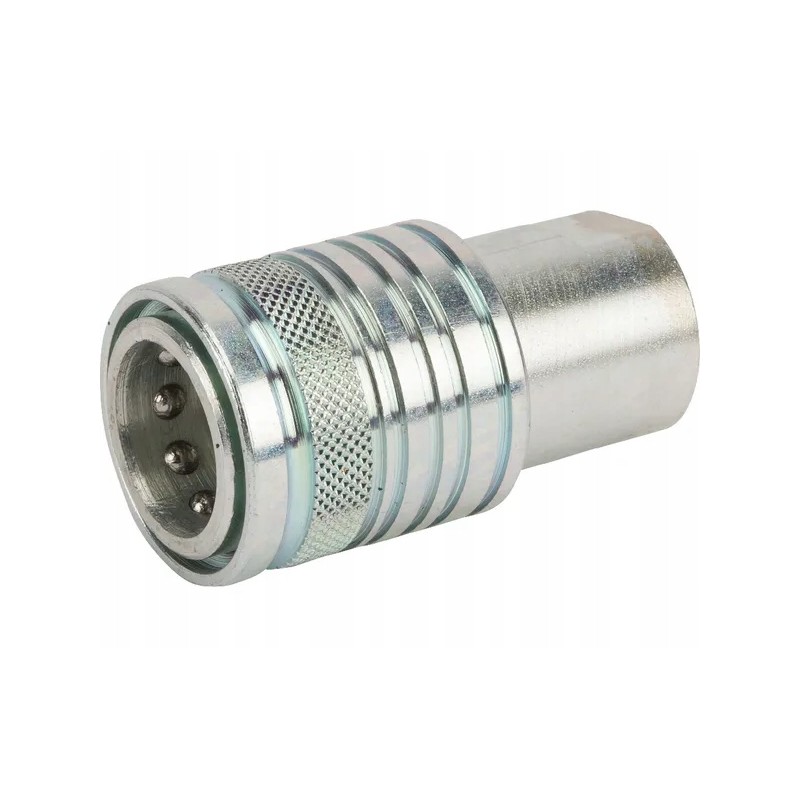

Skpf12imf22 quick connector socket skp f 1 2

SKPF12IMF22 Quick connector socket SKP-F 1/2''Application

Universal use

Agricultural machinery

Municipal technology

Mineral oil-based fluids

Properties

Standard agricultural connector

Push & Pull principle

Breaking function

With shut-off on both sides

Axial actuation of the locking sleeve in both directions (double acting)

Shape

Straight - 2 sides connection

Size (code)

BG 3

Connector type no. 1

Quick connector

Connector type no. 1 - male/female

Female

Connection diameter

20.6 mm

Thread diameter of connector no. 1

22 mm

Type of connector no. 2

Thread

Type of connector no. 2 - male/female

Female

Thread diameter of connector no. 2

M22

Thread pitch of connector no. 2

1.50 mm

Thread type of connector no. 2

Metric

Possibility to connect under pressure

No

ISO standard

7241-1-A

Outer diameter

38 mm

Total length

70 mm

Material

Steel

Surface treatment

White passivated

Working pressure

250 BAR

Working temperature max.

100 °C

Operating temperature min.

-30 °C

Seal material

Nitrile rubber [NBR]

Teflon (PTFE)

Thread type

Internal
