Skpf12l22 quick connector iso 12 5 m22x1 5 15l

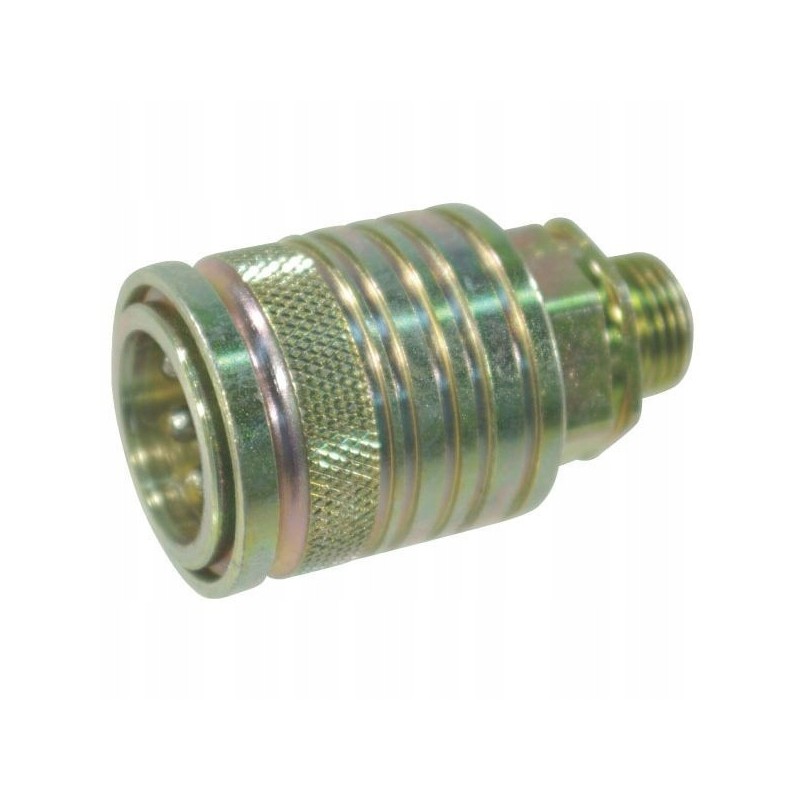

Quick connector ISO 12.5 M22x1.5-15L - socket INDEX: SKPF12L22

Features: - Standard agricultural connector - Push & Pull principle - Tear-off function - With double-sided shut-off - Axial actuation of the locking sleeve in both directions (double-sided action)

Shape: Straight - 2 sides of connection

Application: - Universal use - Agricultural machinery - Municipal technology - Mineral oil based fluids

Outside diameter: 38mm

ISO standard: 7241-1-A

Connection: dB

Connection diameter: 20.5mm

Surface treatment: White passivated

Total length: 71mm

Seal material: Nitrile rubber [ NBR]

Teflon (PTFE)

Working pressure: 250 BAR

Possibility of connecting under pressure: No

Working temperature max: 100°C

Working temperature min: -30 ° C

Connection type: socket

Connection diameter no. 2: 15 mm

Pitch thread of connector no. 2: 1.5mm

Type of connector no. 2: Thread

Thread diameter of connector no. 2: M22

Size (code): BG 3

Thread type of connector no. 2: Metric

Type of connector no. 1: Quick connector

Type of connector no. 1 - male/female: Masculine
