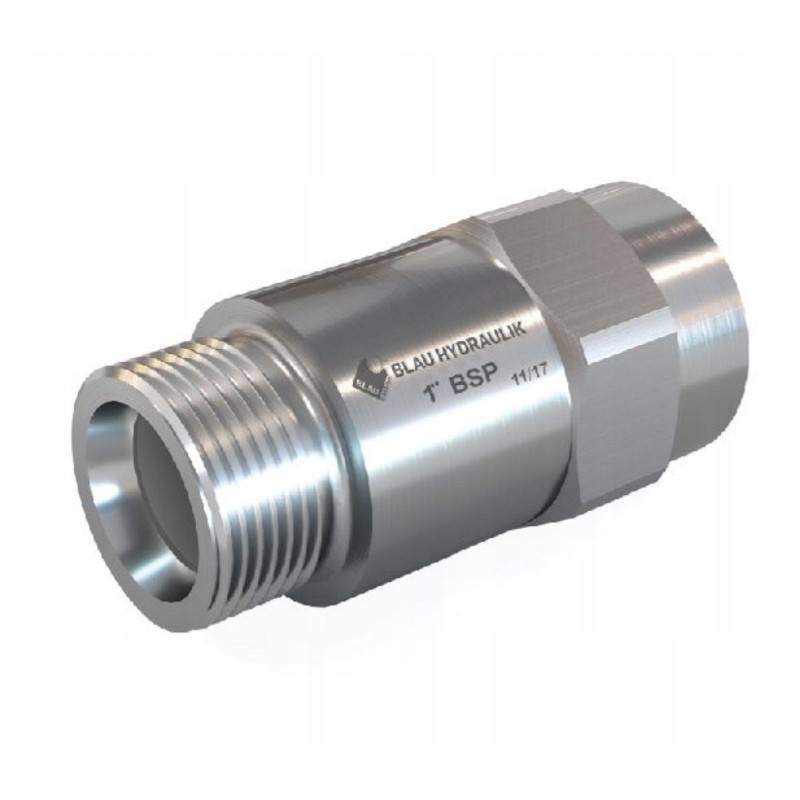

Safety valve for trailer vuba ab 3 8 set

COMPLETE HYDRAULIC VALVE VUBATYP AB 3/8' CARTRIDGE + SAFETY VALVE BODY FOR VUBA AB 3/8 TRAILER SET

Operating temperature - 20 °C/+ 100 °C

Operating pressure up to 420 bar

Available dimensions from 1/4' to 1'

Flow up to 183 L/min

Available threads - BSP, NPT

Material - Carbon Steel

Widely used in hydraulic systems in agriculture, construction and industry.

The valve is mainly mounted on various types of hydraulic cylinders, e.g. telescopic

in loading trailers .

Protects hydraulic cylinders that are exposed to high pressure forces. It closes the oil flow in the event of a cable failure or break, protecting against loss of oil in the cylinder and in trailers against sudden lowering of the unloading box. It is recommended that the valve be screwed directly to the hydraulic cylinder body. If we use a hose to connect the valve to the cylinder, it will not be secured.

At our other auctions, you can buy VUBA inserts and bodies separately.
