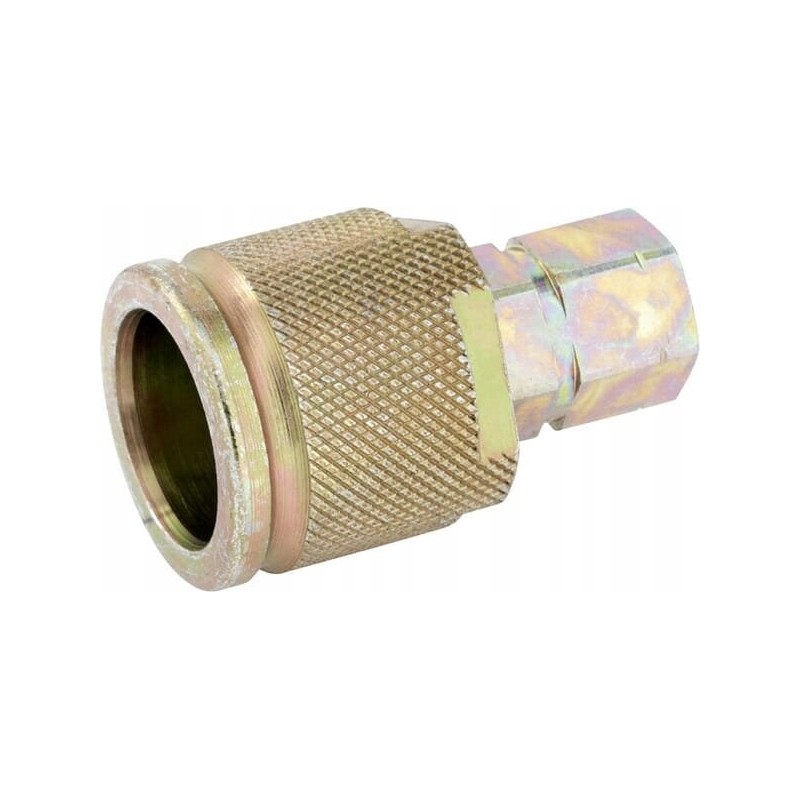

Screwed quick connector 3 8 female thread 1 4

Screwed quick connector 3/8' internal thread. 1/4' - plug Parameters

Part number: SKSM06C04

Unit: piece

Manufacturer: DNP

Shape: Straight - 2 sides connector

Connector type no. 1: Quick connector

Connector type no. 1 - male/female: Male

Connector no. 1 diameter: 13 mm

Connector thread diameter No. 1: M24

Flow at 2 bar pressure: 6 l/min

Working pressure: 450 BAR

Max. working temperature: 100 °C

Min. working temperature: -30 °C

Thread pitch of connector no. 1: 2 mm

Fits Original Number: HS0421GF04

Connector #1 Wrench Size: 30 mm

Connector #1 Thread Type: Metric

Connector #2 Type: Thread

Connector #2 Male/Female Type: Female

Connector #2 Diameter: 35 mm

Thread diameter of connector No. 2: 1/4 inch

Number of turns per inch of thread of connector No. 2: 19

Thread length of connector No. 2: 13 mm

Thread type of connector No. 2: BSP

ISO standard: 14541

Total length: 60 mm

Note: Can be connected at a pressure of max. 50 bar

Specifications

- Self-locking connecting thread

Benefits

- High working pressure

- Protection against unintentional unscrewing due to vibrations Application

- Construction machinery

- Mineral oil based fluids Properties

- Solid workmanship - Low pressure losses - With cut-off on both sides Technical information

- The connector should be screwed in until it stops Seal material

- Nitrile rubber [NBR]

- Teflon (PTFE)
