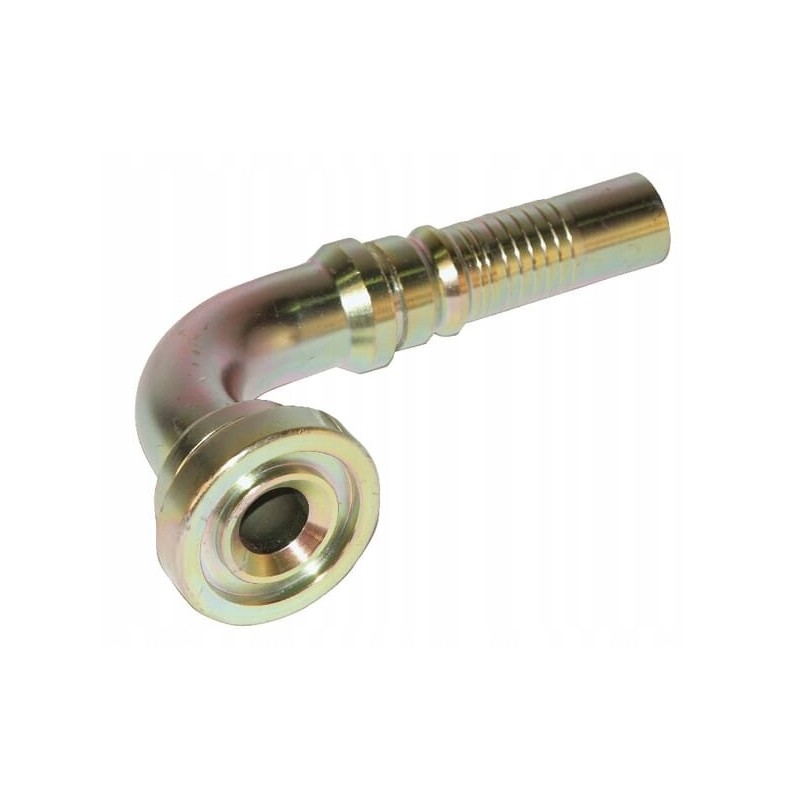

Tip 4sh dn20 collar fi 38 1mm 90

End 4SH-DN20 flange Ø 38.1 mm-90° Parameters

Part number: SFLH201290

Unit: Piece

Manufacturer: Alfagomma

Shape: Elbow - 2 sides connector

Connector type no. 1: Flange

Connector type no. 1 - male/female: Male

Connector type no. 1 - code: SFL

Connector diameter No. 1: 3/4 inch

Connection Diameter: 20 mm

Connector No. 1 Length: 63.2 mm

Connector No. 2 Type: Hose Barb

Connector No. 2 Type - Male/Female: Male

Connection No. 2 Diameter: 3 /4 inch

ISO standard: 6162

Flange outer diameter: 38.1 mm

Flange PSI series: 3000

Angle: 90 °

Material: Steel

OE reference number: H1443390-121200

Surface treatment

- Galvanized

- White passivated
