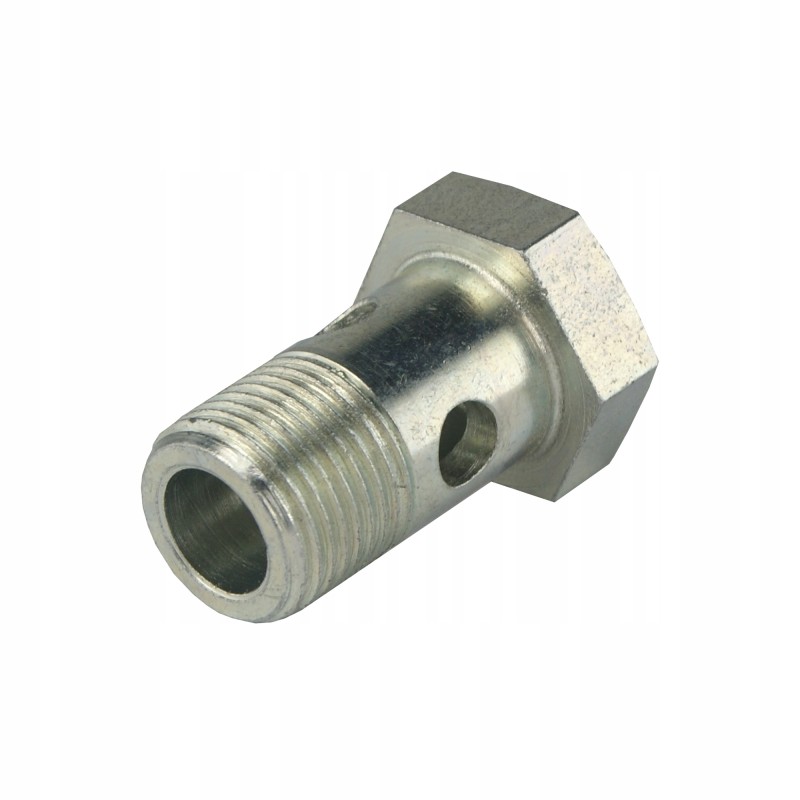

Eye bolt m30x1 5 h 29mm l 47mm hydrolider

HYDRAULIC EYELET SCREW FI 30mmProduction:

Original product of the Hydrolider brand, symbol: 1.60.51.030.1

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The screw fits connections with an eyelet body. It connects the pump, cylinder, distributor, etc. with hydraulic lines.

The eyelet connection system is used where space is limited and a pipe with a traditional elbow does not fit.

The eyelet connection system :

To properly connect the screw, it is necessary to use an eyelet connection and two sealing washers.

The first washer goes between the connector body and the head of the eyebolt. The second one comes between the body of e.g. a pump or cylinder and the connection body (photo).

Technical data:

Material: weldable, galvanized steel, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Thread: external metric 30x1. 5

Required eyelet diameter: 30mm

Total length without head: 47mm

Length of the smooth part: 29mm

Length of the threaded part: 18mm

Head height: 11mm

Wrench size: 36
