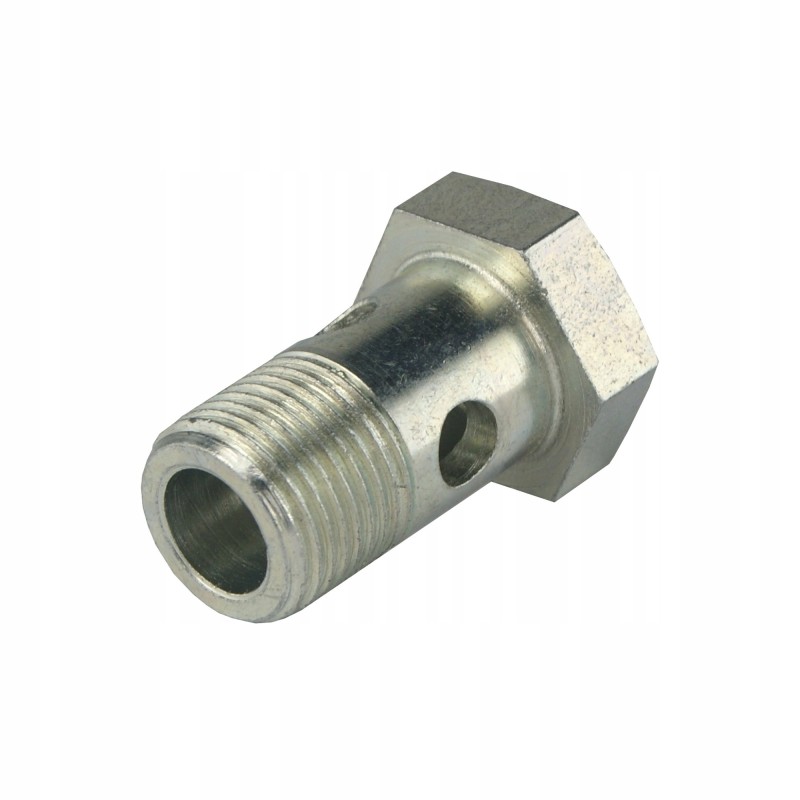

Eye bolt m16x1 5 h 14mm l 28mm hydrolider

HYDRAULIC EYELET SCREW FI 16mmProduction:

Original product of the Hydrolider brand, symbol: 1.60.51.016.1

Application:

It is widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

The screw fits connections with an eyelet body. It connects the pump, cylinder, distributor, etc. with hydraulic lines.

The eyelet connection system is used where space is limited and a crimped pipe with a traditional elbow does not fit.

The connection system eyelets:

To properly connect the screw, it is necessary to use an eyelet connection and two sealing washers.

The first washer goes between the connector body and the head of the eyebolt. The second one comes between the body of e.g. a pump or cylinder and the connection body (photo).

Technical data:

Material: weldable, galvanized steel, corrosion-resistant

Version: light

Nominal pressure: 180bar

Maximum pressure: 230bar

Fluid type: hydraulic oil

Thread: external metric 16x1. 5

Required eyelet diameter: 16mm

Total length without head: 28mm

Length of the smooth part: 14mm

Length of the threaded part: 14mm

Head height: 7mm

Wrench size: 22
