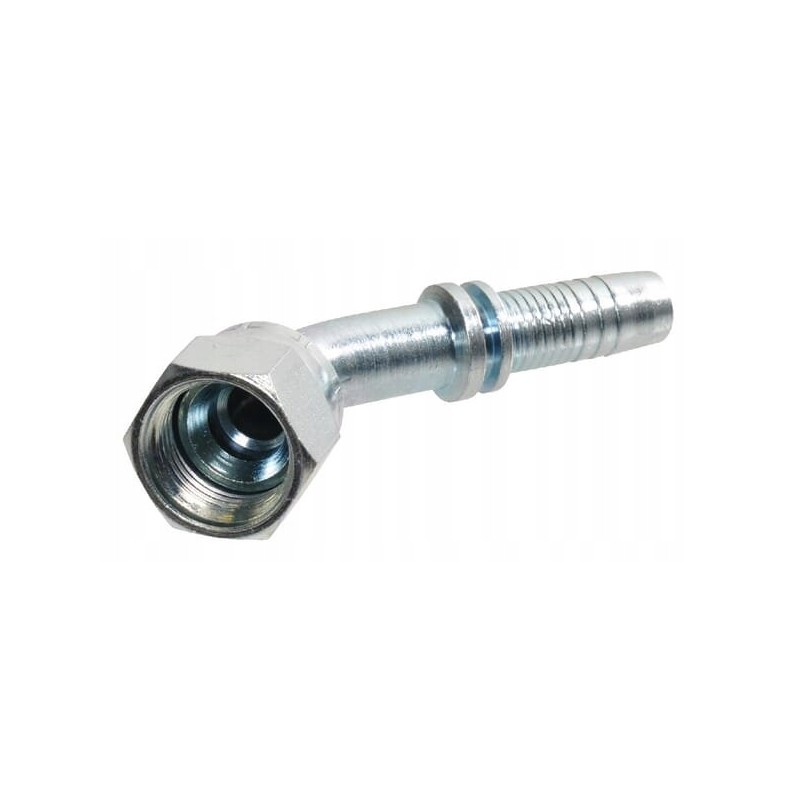

Tip dn06 9 16 unf 45

Tip DN06-9-16-UNF-45° Parameters

Part number: PA6945

Unit: Piece

Manufacturer: Alfagomma

Product details: - Sealing on the cone - metal on metal - Flare end

Cone angle: 37 °

Shape: Elbow - 2 sides of the connection

Connection type no. 1: Thread

Connector type no. 1 - male/female: Female

Connector type no. 1 - code: DKJ

Connector no. 1 diameter: 9/16 inch

Connector #1 Length: 39.4 mm

Connector Thread Type: UNF

Connector #1 Wrench Size: 19.0 mm

Connection Type No. 2: Hose Barb

Connection Type No. 2 - Male/Female: Male

Connection No. 2 Diameter: 1/4 inch

Angle: 45 °

Material: Steel

OE reference number: H122254 - 04060M

Connection: JIC union nut (UNF thread) with internal cone 74°< p>

Type: DKJ

Surface treatment

- Galvanized

- White passivated

Application

Bolted connections on the folded edge of the sheet metal
