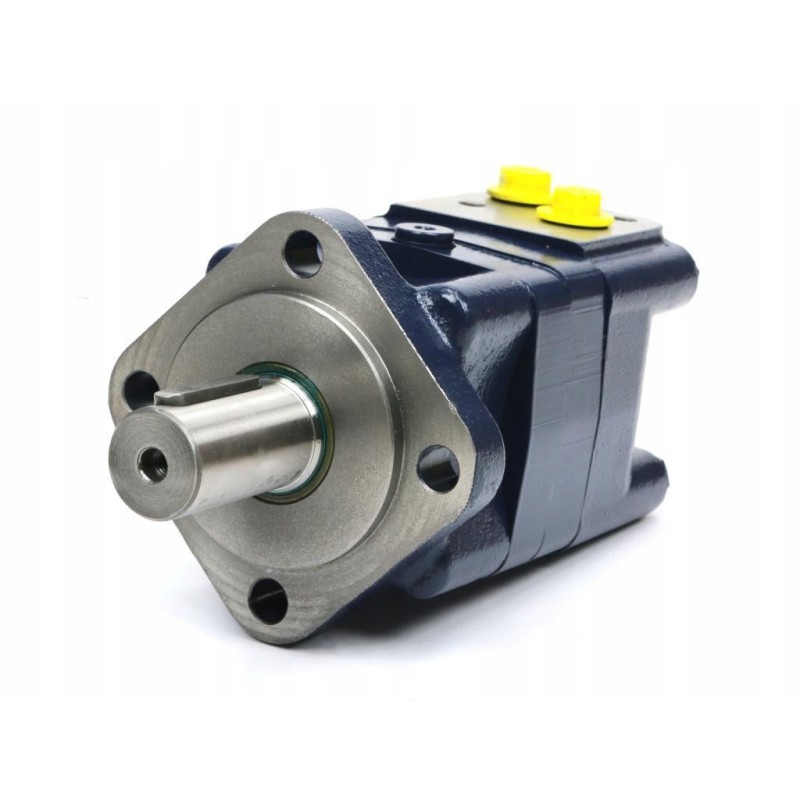

WMS orbital hydraulic motor 160 cm3 rpm

WMS orbital hydraulic motor 160 cm3/rev (160 bar / max. 225 bar) Waryński EAN: 5902287199307

SKU: WMS-160

All products on our auctions are new and proven. manufacturers

WMS orbital hydraulic motor 160 cm3/rev (160 bar / max. 200 bar / max. instantaneous 225 bar) Waryński. WMS series motors are characterized by compact design, high torque and high absorbency. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. The reinforced shaft seal allows both series and parallel motor connections. In order to achieve a longer service life, it is recommended that optimal operating conditions be at the level of 1/3 to 2/3 of the maximum parameters.

Absorption capacity: 160.8 cm3/rev Roller diameter: 32 mm Drain connection thread: 1/4 ' BSP'cal Connection threads: 1/2' BSP'cal Max. working pressure: 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine)MPa (bar) Max. Instantaneous pressure: 22.5 MPa (225 bar) - Note: maximum 1 second / 1 minute of engine operation (exceeding these parameters may result in immediate engine damage) MPa (bar) Max. Nominal pressure: 16 MPa (160 bar) - Note: maximum continuous engine operating pressureMPa (bar) Max. output power: 14kW Max. Torque: 429Nm Max. Nominal torque: 358Nm Max. Nominal speed: 465rpm Max. Working fluid flow: 75l/min Packing in:: 1

Max. Instantaneous pressure: 22.5 MPa (225 bar) - Note: maximum 1 second / 1 minute of engine operation (exceeding these parameters may result in immediate engine damage)MPa (bar)

Max. Nominal pressure: 16 MPa (160 bar) - Note: maximum continuous engine operating pressureMPa (bar)

Max. working pressure: 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine)MPa (bar)

Shaft diameter: O32mm

Absorption capacity: 160.8cm3/rev

Connection threads: 1/2' BSP'cal

Drain connection thread: 1/4' BSP'cal

Max Nominal speed: 465 rpm

Max. Nominal torque: 358Nm

Max. Torque: 429Nm

Max. Working fluid flow: 75l/ min

Max. output power: 14kW

Packing by:: 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
