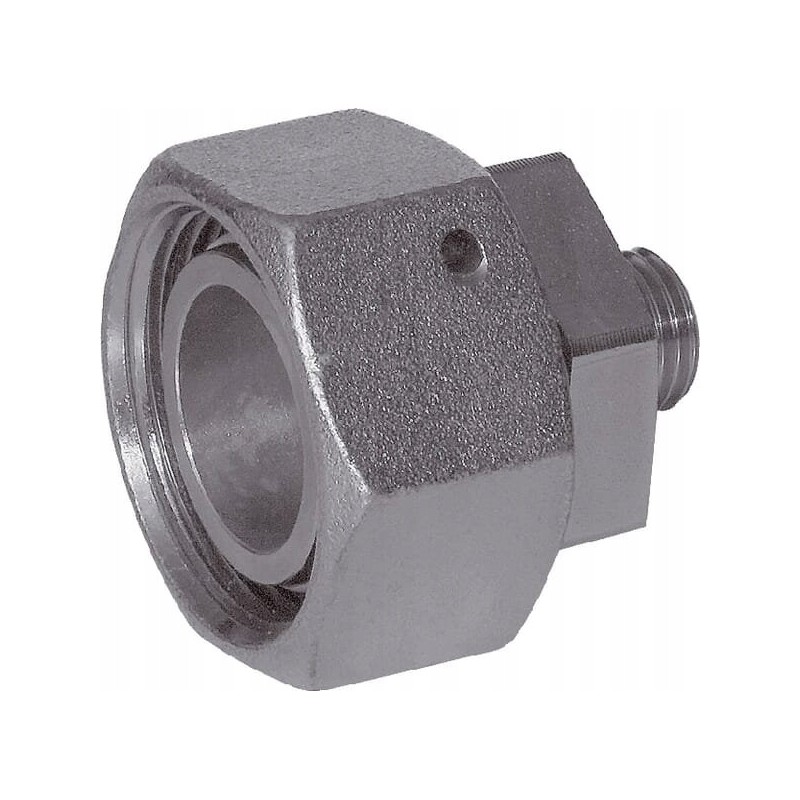

Straight connector with nut m36x2 28l m22x1 5 15l

Straight connector with nut M36x2 28L - M22x1.5 15L Parameters

Part number: REDSD2815L

Unit: piece

Manufacturer: Voss

Features: - High corrosion resistance

Shape: Straight - 2 sides of connection

Type of connector no. 1 - male/female: Female

Thread diameter of connector no. 1: M36

Inner diameter .: 12 mm

Working pressure max.: 250 BAR

Thread pitch of connector no. 1: 2 mm

Series: L

Wrench size for connector no. 1: 32 mm

Type of connector no. 2 - male/female: Male

Connector thread diameter No. 2: M22

Connector No. 2 thread pitch: 1.5 mm

Connector No. 2 thread type: Metric

Wrench size for connector No. 2: 41 mm

Length: 36 mm

L1: 36 mm

L2: 51 mm

Ø pipe D1 (mm): 28 mm

pipe Ø D2 (mm): 15 mm

O-ring size: 26 x 2 mm

Pressure: PN (nominal pressure) and Temperature acc. to DIN 2401. BAR

S3: 46 mm

Wrench opening [S1]: 32 mm

Wrench opening, other end [S2]: 27 mm

Application

- Hydraulic hose

- Hydraulic lines

Technical information

- Viton

gasket available on request Pipe diameter

- 28 mm

- 15 mm
