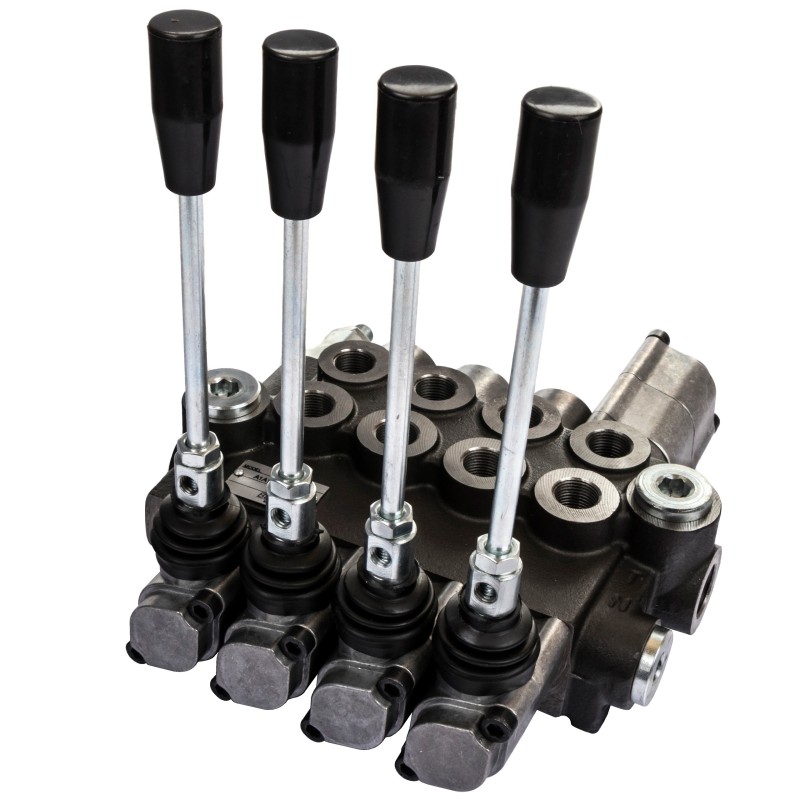

Hydraulic distributor 4 sec 40l 1 sec floating

Hydraulic distributor 4-sec 40l 1-floating section MIZAR number: 28744

Hydraulic distributor 4-sec 40l 1-floating section Hydraulic distributor 4-section

It is widely used in hydraulic systems in construction, agriculture and industry.

The distributor is adapted to various types of machines such as: agricultural machines, tractors, sprayers, tourers, cyclopes, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and other hydraulically controlled devices.

Manifold with one floating section used, among others, for snow plows or TUR front loaders.

Technical information:

Operating temperature: 15 / +80°C

Capacity: 40L/ min

Internal threads in the body:

Power connection port: 1/2'

Return connection port: 1/2'

Section connection ports: 3/8'

PRESSURE RANGE:

Maximum supply pressure: 250Bar

Maximum return pressure: 50Bar

Maximum section pressure: 300Bar

Overflow valve factory set to 175Bar

High quality manifold. Made in Bulgaria.

MIZAR number: 28744
