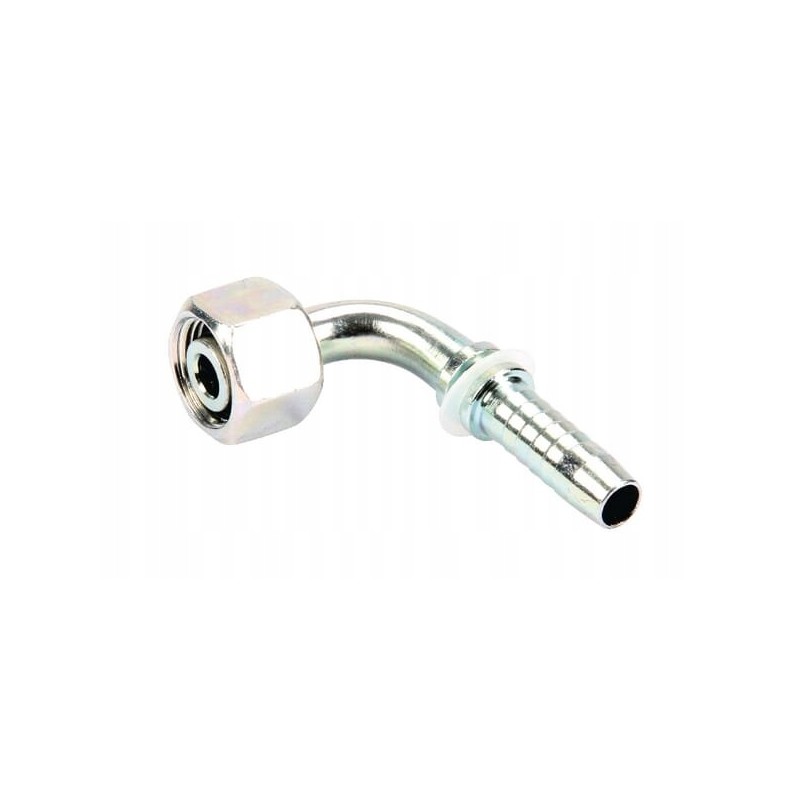

End cap dn16 m22x1 5 15l 90

End cap DN16-M22x1.5-15L-90° Parameters

Part Number: PGLO162290

Unit: Piece

Manufacturer: Alfagomma

Cone Angle: 24 °

Shape: Elbow - 2 Sides Connection

Connector Type No. 1: Conical

Connector Type No. 1 - Male/Female: Female

Connector Type No. 1 - code: DKOL

Thread diameter of connector no. 1: M22

Thread pitch of connector no. 1: 1.50 mm

Wrench size for connector no. 1: 57.0 mm

Type of connector no. 2: Hose connector

Type of connector no. 2 - male/female: Male

Diameter of connection no. 2: 5/8 inch

Dimension from the axis of the connector to the bottom of the next connector: 52 mm

Angle: 90 °

Material: Steel

Series: 15L

Connection: xx

Type: DKOL

Surface treatment

- Galvanized

- White passivated
