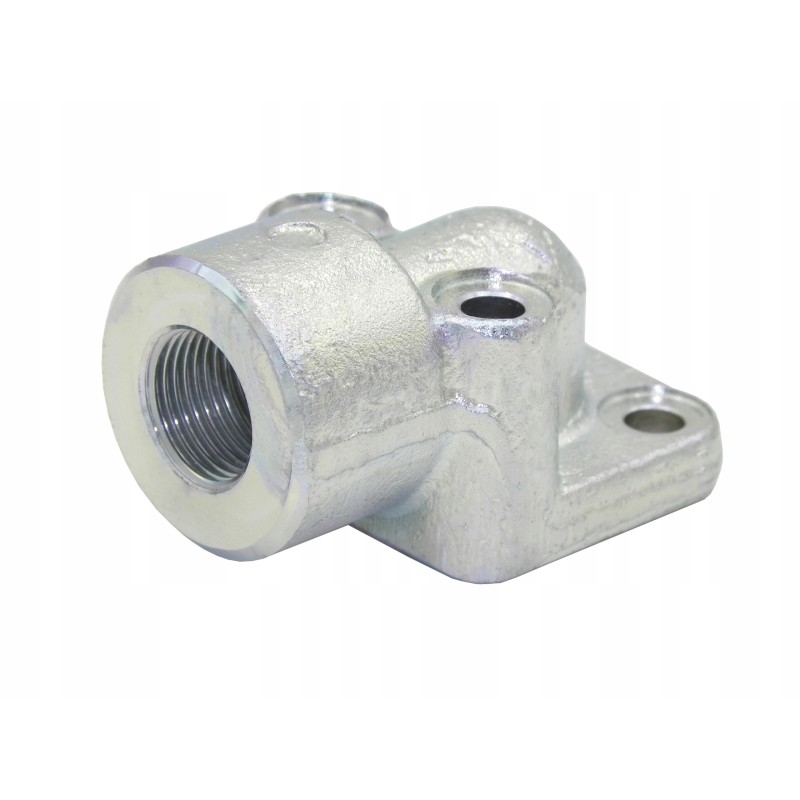

Flange connection rgb g 3 4 40 mm

FLANGE CONNECTION RGB G 3/4' - 40 mm Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and industry in general.

Elbow flange connection for connecting the suction or discharge line.

The set includes: connection flange, fixing screws, washers, O-ring seal.

Technical data:

Technical information: - With O-ring and screws

Unit: Set

Suitable for: Line connection flange for various Bosch pumps and motors

A (mm): 40

B (mm): 17

F (mm): 47.5

P - Thread [BSP]: 3/4''

Hole spacing: 40mm

self-sealing rings: 22.22 x 2.62

Maximum working pressure ( bar): 300

Material: Aluminum

Screws: M6 x 35/ M6 x55

We offer most types of hydraulic motors as well as a complete range of power hydraulics. Pumps, distributors, hydraulic cylinders, valves, hydraulic lines.
