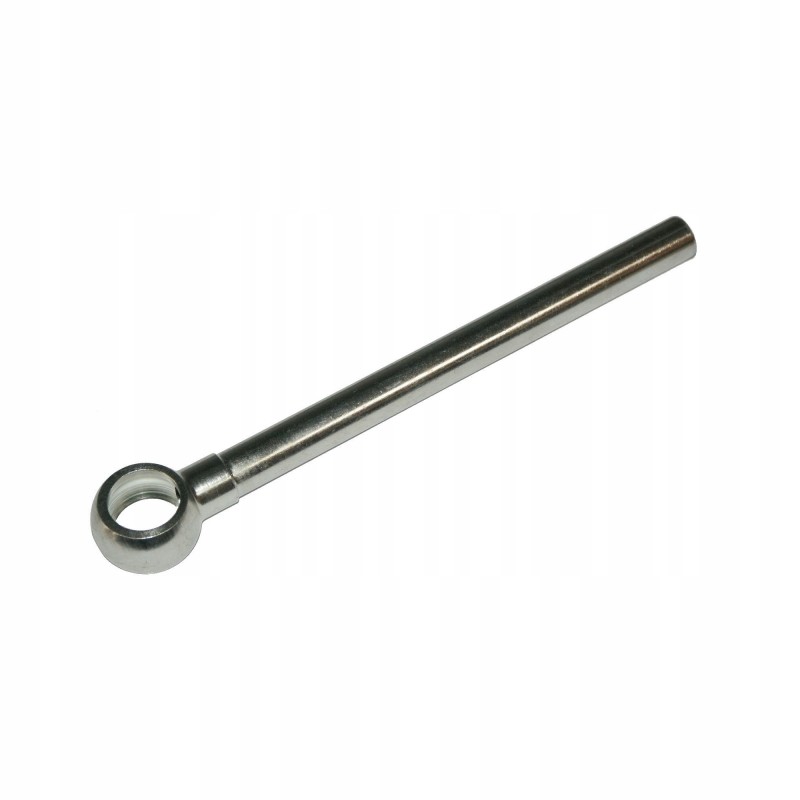

15 mm tube with mesh 1 2, length 110 mm, hydrolider

HYDRAULIC TUBE LENGTH 110mm WITH A MESH OF 1/2' DIAMETER Production:

Original product of the Hydrolider brand, symbol: 1.60.52.125

Application:

It has a wide range of applications in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Metal pipes are a solid carrier of the oil stream in the hydraulic system. Compared to hydraulic lines, the tubes are characterized by a longer service life, the tube surface is galvanized, resistant to corrosion and weather conditions.

Technical data:

Inner diameter of the tube (through): 12mm

Pipe outer diameter: 15mm

Pipe wall thickness: 1.7mm

Material:

Steel

For mounting the pipe in the system requires the so-called TEKALAN connectors, available at other auctions: (photo):

The TEKALAN system does not require additional sealing work during installation, e.g. welding or welding. The sealing occurs automatically, the ring seals the connection when the nut is tightened.

How to properly attach the eyelet:

The eyelet has space for an ED washer or a copper washer, it is recommended to install the washer in two places, under body and above the body (photo)

Example of application:

installation of the so-called VBPDE valve LOCK on the hydraulic cylinder:
